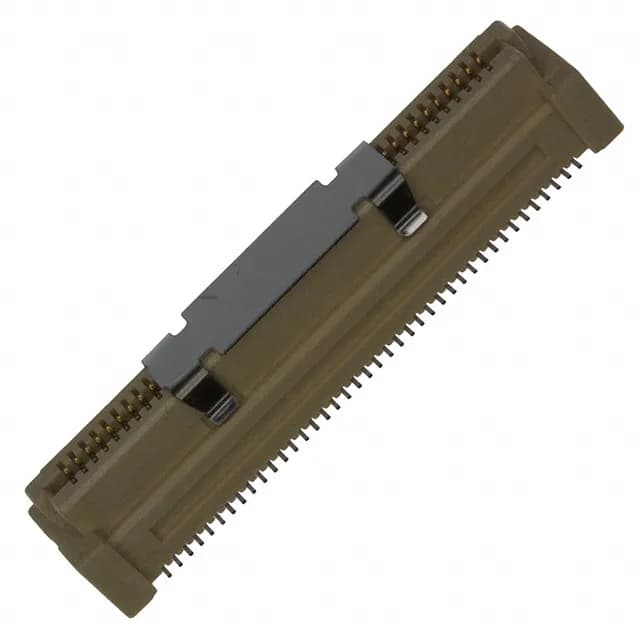

TE Connectivity Free Height (FH) receptacle, outer shroud contacts, 80 positions, 2 rows, 0.031" (0.80mm) pitch, surface mount, gold contact finish 8.00µin, mated stacking heights 9mm-12mm, active.
| Parameter | Value |
|---|---|
| Series | Free Height (FH) |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.305\" (7.75mm) |
| Mated stacking heights | 9mm, 10mm, 11mm, 12mm |
| Pitch | 0.031\" (0.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
| Contact finish thickness | 8.00µin (0.203µm) |
The buyer selects the mating plug from the Free Height series to hit the exact board spacing — the receptacle alone does not set the stack height. The 0.80 mm pitch keeps the overall connector footprint compact even at 80 circuits.
The mating connector is a Free Height (FH) plug with center strip contacts, same position count, and the desired stacking height from the 9mm, 10mm, 11mm, or 12mm range. The plug is also SMT and 0.80 mm pitch.
