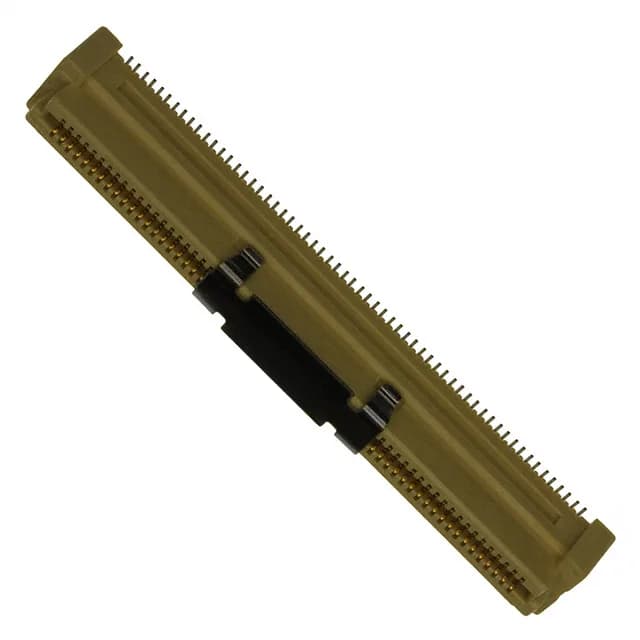

TE 5-5179180-5 Free Height Receptacle, 120 Pos, 0.80mm

MPN 5-5179180-5
Active

TE Connectivity Free Height (FH) receptacle, 120 positions, 0.80mm pitch, 2 rows, SMT, gold-plated contacts, 7.75mm above-board height, mated stacking heights 9-12mm.

$11.2800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-5179180-5 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.305\" (7.75mm)
Mated stacking heights9mm, 10mm, 11mm, 12mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions120
Contact finish thickness8.00µin (0.203µm)

Product details

120-Position Mezzanine Receptacle at 0.80 mm Pitch

At a 0.80 mm pitch, the contact density is high enough that the board layout engineer needs to plan the escape routing under the component — 120 signals on a 0.80 mm grid in two rows means a tight fan-out to inner layers. The receptacle accepts mating headers that produce stack heights of 9 mm, 10 mm, 11 mm, or 12 mm, giving the mechanical designer flexibility without changing the receptacle BOM line.

Board Layout and Z-Height Budget

The receptacle stands 7.75 mm above the PCB surface. That height, combined with the 0.80 mm pitch and 2-row layout, sets the keep-out zone for adjacent components on the receptacle board. The mating header (not included) determines the final stack height; the receptacle itself is common across the 9-12 mm range, so stocking one part number covers multiple board-spacing configurations.

No end-of-life notice or last-time-buy is recorded.

MPN
5-5179180-5
