5-Position FFC Vertical Connector in the Triomate Series
FFC Thickness and Cable Fit
The contact beam accepts FFC thickness from 0.13mm to 0.38mm — a 0.5mm thick FFC will not seat properly and risks intermittent contact or damage to the connector.

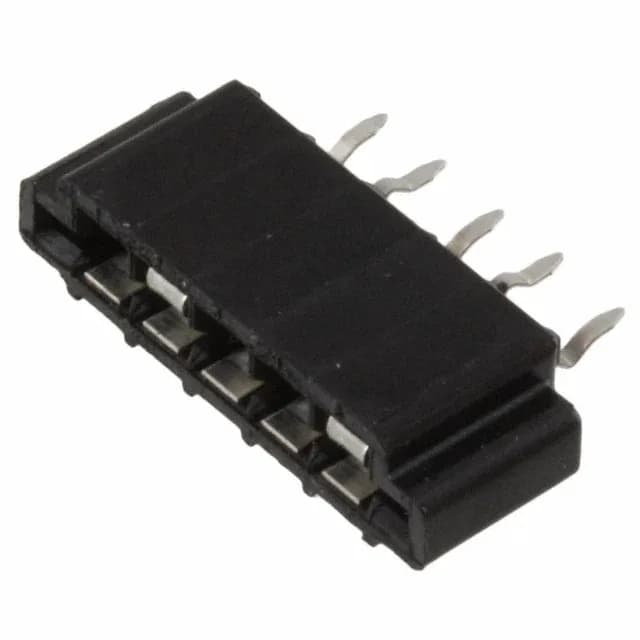

5-520315-5 TE Connectivity FFC Vertical 5POS 2.54mm PCB
MPN5-520315-5
Active
TE Connectivity AMP Connectors Triomate series, FFC/FPC connector, 5 positions, 0.100" (2.54mm) pitch, vertical through-hole, kinked pin termination, tin-plated phosphor bronze contacts, rated 1A at 250V, UL94 V-0 housing
$0.6500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTriomate
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Triomate |
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 250V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester Thermoplastic, Glass Filled |
| Height above board | 0.273\" (6.93mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Termination | Kinked Pin |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.13mm ~ 0.38mm |
| Positions | 5 |
Product details
Frequently asked questions
Can the 5-520315-5 be used with a 0.5mm thick FFC cable?
No. The specified FFC thickness range is 0.13mm to 0.38mm. A 0.5mm cable exceeds the contact beam's designed thickness window and will not make reliable contact.
Is the 5-520315-5 RoHS compliant?
Yes, it is listed as RoHS Compliant.
