TE Connectivity AMP Connectors 5-5530843-3 — Card-Edge Connectors

TE Standard Edge II 5-5530843-3

MPN5-5530843-3
Active

TE Standard Edge II dual female edge connector, 5-5530843-3, 34 positions, 0.100" (2.54mm) pitch, dual readout, through-hole solder, gold 30.0µin contacts, accepts 0.054"~0.070" cards.

$3.1600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-5530843-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesStandard Edge II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-5530843-3 specifications
ParameterValue
SeriesStandard Edge II
Card typeNon Specified - Dual Edge
MountingThrough Hole
Operating temperature-55°C ~ 85°C
ColorBlack
Contact materialPhosphor Bronze
Material - insulationPolyester, Glass Filled
Pitch0.100\" (2.54mm)
GenderFemale
PackageBulk
Read outDual
TerminationSolder
Card thickness0.054\" ~ 0.070\" (1.37mm ~ 1.78mm)
Contact finishGold
Rows2
Positions34
Contact finish thickness30.0µin (0.76µm)

Product details

Edge-Card Connector for 0.100" Pitch Daughtercards

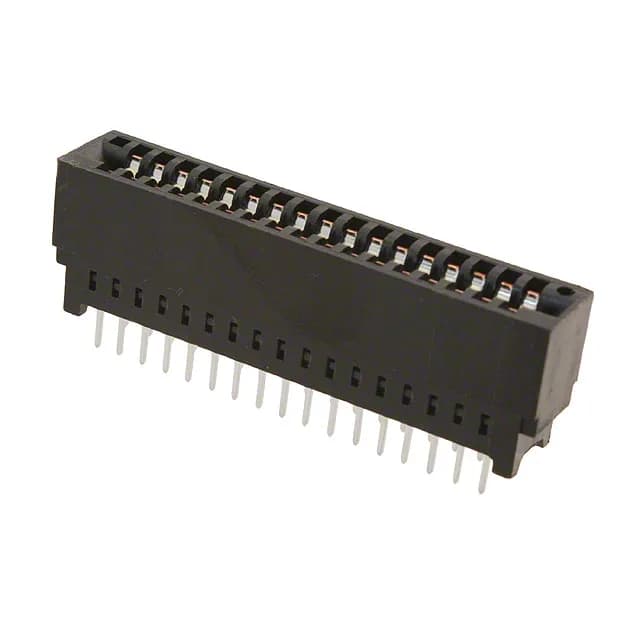

The TE 5-5530843-3 is a 34-position dual-readout female edge-card connector from the Standard Edge II series.

Card Thickness Acceptance and Contact Plating

The contact beam geometry is designed for a specific board thickness window: 0.054" to 0.070" (1.37mm to 1.78mm). A card thinner than 0.054" will not generate enough normal force for a reliable connection; thicker than 0.070" risks over-stressing the contacts or failing to seat fully.

Through-Hole Solder Mounting

Termination is through-hole solder — the contact tails pass through plated holes in the motherboard and are wave-soldered.

It is RoHS3 compliant.

Frequently asked questions

What card thickness does the 5-5530843-3 accept?

The 5-5530843-3 accepts a card thickness range of 0.054" to 0.070" (1.37mm to 1.78mm). The contact beams are designed for that window — a card outside those limits will not mate reliably.

What is the pitch of the 5-5530843-3 edge connector?

The daughtercard pad layout must match this pitch on both sides of the board edge for the dual-readout contacts to align.
