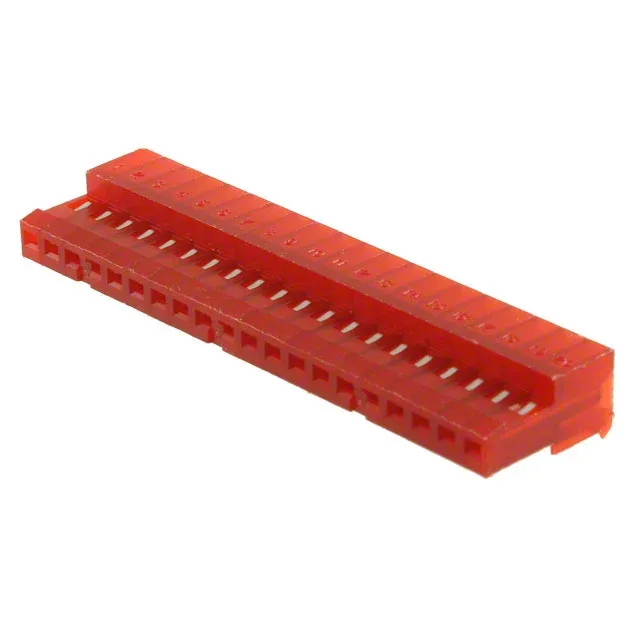

5-640440-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 5-640440-0, 20-Pos IDC Receptacle, 0.100" Pitch

MPN5-640440-0
Active

TE Connectivity MTA-100 series, 5-640440-0, 20-position IDC receptacle, 0.100" (2.54mm) pitch, 1 row, tin-plated contacts, free-hanging right-angle mount, locking ramp, 22 AWG, bulk.

$4.7200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5-640440-0 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions20
Contact finish thickness80.0µin (2.03µm)

Product details

What this 20-position IDC receptacle does in a harness

The locking ramp holds the pair mated against vibration in a cabinet or panel harness.

Termination and wiring — IDC on 22 AWG

It accepts 22 AWG wire, either discrete strands or ribbon cable. The closed-end feature means the far side of the housing is sealed, preventing wire stubs from poking through.

This receptacle mates with any standard MTA-100 header (0.100" pitch, single-row, male pins). No secondary lock or TPA is required; the IDC termination and the latch are the full retention system. The red housing colour is a visual key for the 20-position variant in a multi-wire harness.

Frequently asked questions

What is the pitch of the 5-640440-0 connector?

The pitch is 0.100" (2.54mm), standard for the MTA-100 series, matching the footprint of TE's MTA-100 headers.

Can 5-640440-0 be used with 22 AWG discrete wire?

Yes, it accepts 22 AWG discrete or ribbon cable via IDC termination — no crimp terminals needed.

What is the mating connector for 5-640440-0?

It mates with any standard MTA-100 single-row header at 0.100" pitch, such as the TE 640445 series. The locking ramp on the receptacle engages the header ramp for a vibration-resistant latch.
