9-Position D-Sub Receptacle for Cable Harnesses

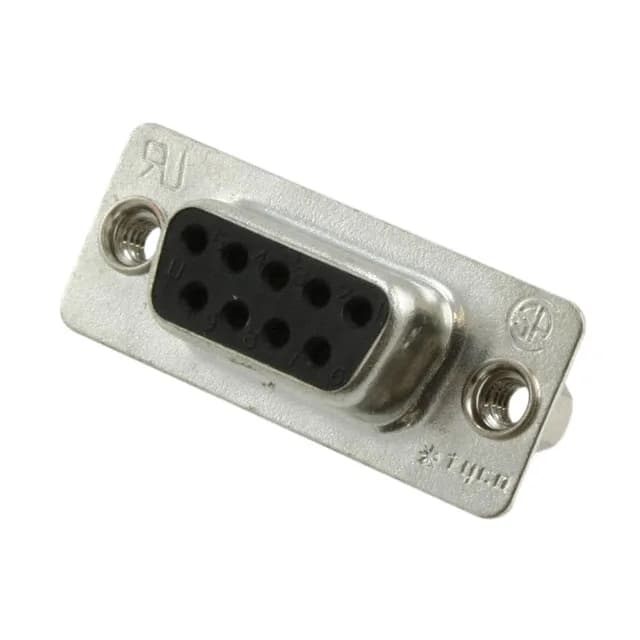

The TE Connectivity AMPLIMITE HD-20 5-747905-7 is a 9-position D-sub receptacle with female sockets, arranged in two rows. It uses solder cup termination — each contact is hand-soldered to a discrete wire, making it a field-serviceable choice for cable harnesses and panel-mount applications where a PCB is not involved. The free-hanging (in-line) mounting style and the cable-side 4-40 threaded flange let you secure the connector to a panel or mate it with a standard D-sub plug using jack screws.
Wiring and Termination — Solder Cup, No Crimp Tool Needed
Each contact terminates via a solder cup — you strip the wire, tin it, and solder into the cup. No crimp tool or die set required; a standard soldering iron and heat-shrink tubing are the shop essentials. The steel shell is tin-plated for corrosion resistance and provides EMI shielding when mated with a matching D-sub plug.
