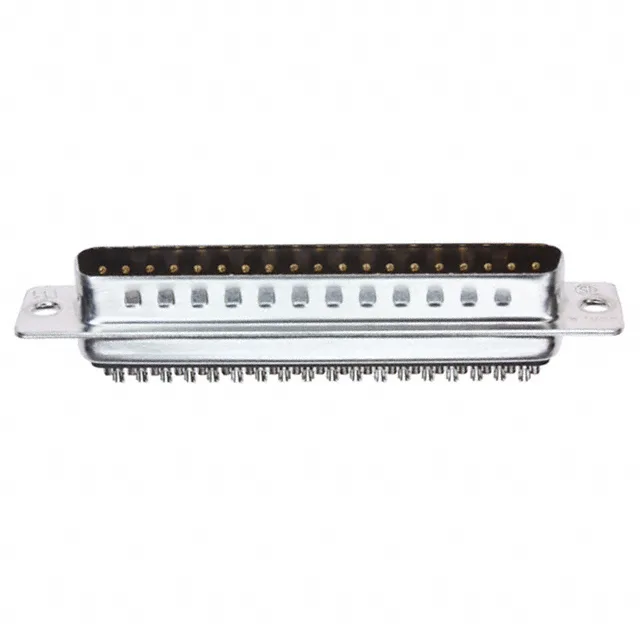

TE 5-747916-2 AMPLIMITE HD-20 D-Sub Plug, 37 Pos, Solder Cup

MPN5-747916-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 37 positions, 2 rows, male pins, solder cup termination, gold-plated contacts, 3A current rating, 250V voltage rating, free-hanging in-line mount, black PBT housing, UL94 V-0.

$6.7200Ref. price · indicative, final on quote
5-747916-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-747916-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Voltage rating250V
Current rating3A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolybutylene Terephthalate (PBT), Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesGrounding Indents
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37
Contact finish thickness8.00µin (0.203µm)

Product details

The TE Connectivity 5-747916-2 is a 37-position male D-sub plug from the AMPLIMITE HD-20 series, terminated via solder cups for field wiring or cable assembly.

Pinout and Mating Half

The pinout follows the standard D-sub 37-position layout (shell size 4, DC/C) — pins 1-37 in two rows, with the odd-numbered pins in the top row and evens in the bottom, as defined by the D-subminiature interface standard. For a complete mated pair, pair this plug with a TE AMPLIMITE HD-20 receptacle of the same position count.

Frequently asked questions

Where can I buy 5-747916-2?

Submit a request for current pricing and availability — lead time and stock are confirmed at quote time.

What is the pinout of TE 5-747916-2?

The 37-pin D-sub plug follows the standard shell size 4 (DC, C) layout: two rows, odd-numbered pins in the top row, even-numbered in the bottom row, per the D-subminiature interface standard. Pin 1 is at the top-left when viewed from the mating face with the D-shaped shell oriented with the wide side up.

What is the mating female connector for 5-747916-2?

The mating connector is a 37-position D-sub receptacle with shell size 4 (DC, C) layout, from the same AMPLIMITE HD-20 series. The plug has an unthreaded housing flange, so the receptacle must provide the threaded inserts or locking mechanism for a secure mated pair.
