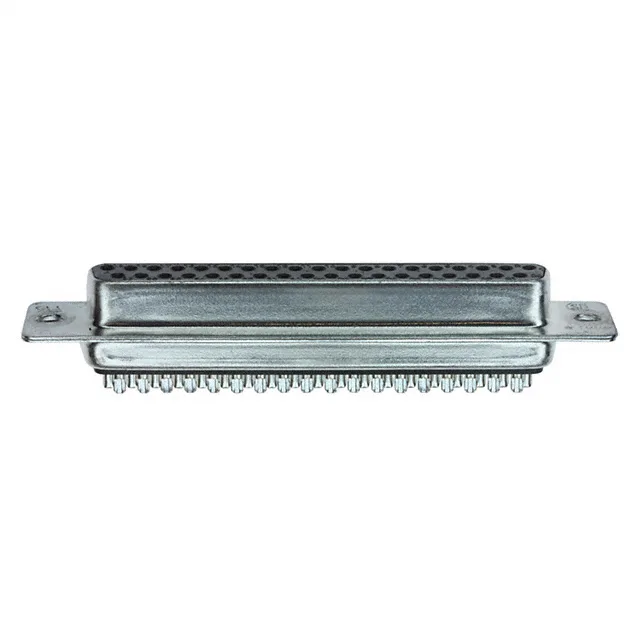

5-747917-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5-747917-2 D-Sub Receptacle, 37 Position

MPN5-747917-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5-747917-2, 37 positions, 2 rows, 3A per contact, 250V, solder cup termination, free-hanging, gold-plated contacts.

$12.7300Ref. price · indicative, final on quote
5-747917-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-747917-2 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current rating3A
Shell size, connector layout4 (DC, C)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolybutylene Terephthalate (PBT), Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageTray
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions37
Contact finish thickness8.00µin (0.203µm)

Product details

37-Position D-Sub Receptacle for Cable Assemblies

The TE Connectivity 5-747917-2 is a 37-position D-Sub receptacle from the AMPLIMITE HD-20 series, populated with female sockets and terminated via solder cups for field-wiring or harness build. The 2-row layout uses the standard DC shell size (shell layout 4), which mates with the corresponding DC-size plug. The free-hanging (in-line) mounting and unthreaded flange mean it is designed for cable-to-cable or cable-to-panel applications where the connector is secured by a separate clamp or bracket, not integrated jack-screws.

Solder Cup Termination and Field Wiring

The solder cup termination accepts stripped wire ends directly — no crimp tool required, which simplifies field repair and low-volume harness assembly. The brass contacts with 8.00µin gold finish provide reliable signal contact for moderate mating cycles; the gold thickness is standard for occasional reconnect in service, not for high-cycle hot-swap applications.

Frequently asked questions

What is the mating connector for 5-747917-2?

The mating half is a D-Sub plug (male pin) in the same AMPLIMITE HD-20 series with a DC shell size (layout 4), 37 positions, such as the 5-747908-2. The unthreaded flange means the pair is secured by a separate clamp or bracket, not integrated screwlocks.
