TE Connectivity AMP Connectors 50462-6

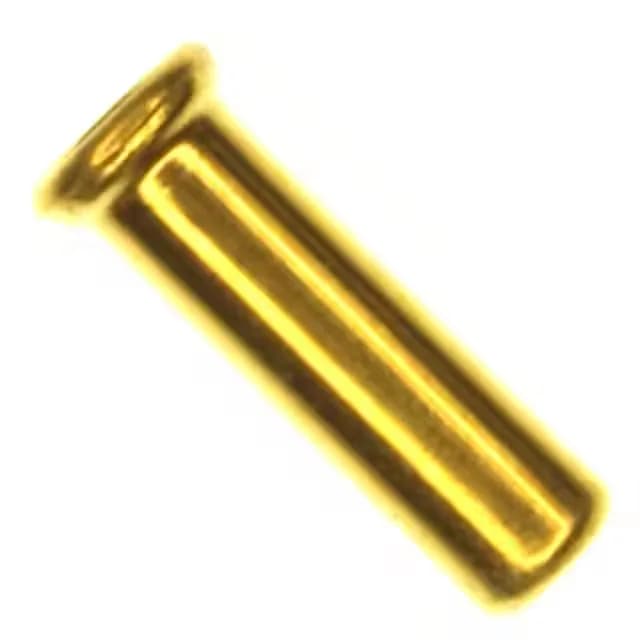

50462-6 TE Connectivity PCB Pin Socket – Gold

MPN 50462-6
Active

TE Connectivity AMP Connectors 50462-6, Series 2 PCB pin socket, accepts 0.014"–0.026" pin diameter, gold-plated beryllium copper contact, solder termination, closed bottom, 30.0µin gold, -65°C–125°C.

$0.9200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

50462-6 specifications
ParameterValue
Series2
Tail typeNo Tail
Mounting hole diameter0.052\" (1.32mm)
Operating temperature-65°C~125°C
Socket depth0.165\" (4.19mm)
Contact materialBeryllium Copper
PackageBulk
FeaturesClosed Bottom
TerminationSolder
Contact finishGold
Flange diameter0.070\" (1.77mm)
Length - overall0.178\" (4.52mm)
Accepts pin diameter0.014\" ~ 0.026\" (0.36mm ~ 0.66mm)
Contact finish thickness30.0µin (0.76µm)

Product details

What This Socket Accepts and Why It Matters

The 50462-6 is a PCB pin socket from TE Connectivity's Series 2, designed to accept pin diameters from 0.014" to 0.026" (0.36mm to 0.66mm). That range covers common component leads, test pins, and header posts — but if your pin is outside that window, this socket won't grip it reliably. For a socket that might see dozens of mating cycles in field service, that plating grade buys you years of contact integrity. Closed bottom construction prevents solder from wicking up into the socket barrel during wave or hand soldering — a common failure mode in open-bottom sockets that leaves the contact cavity blocked. The solder termination is straightforward: drop it into a plated through-hole and solder.

Temperature Range and Material Choices

The beryllium copper contact retains its elastic modulus across that span — tin-bronze or brass contacts would relax and lose retention force at the high end. The flange diameter is 0.070" (1.77mm) and the mounting hole diameter is 0.052" (1.32mm) — these dimensions set the PCB footprint. Overall length is 0.178" (4.52mm) with a socket depth of 0.165" (4.19mm), so the pin insertion depth is well defined.

The base product number is 50462, which covers the family. No official pin-compatible replacement or second source is listed — if you need an alternative, the 50462-5 and 50462-4 are sibling variants within the same series.
