Pin socket that grabs a range of pin diameters

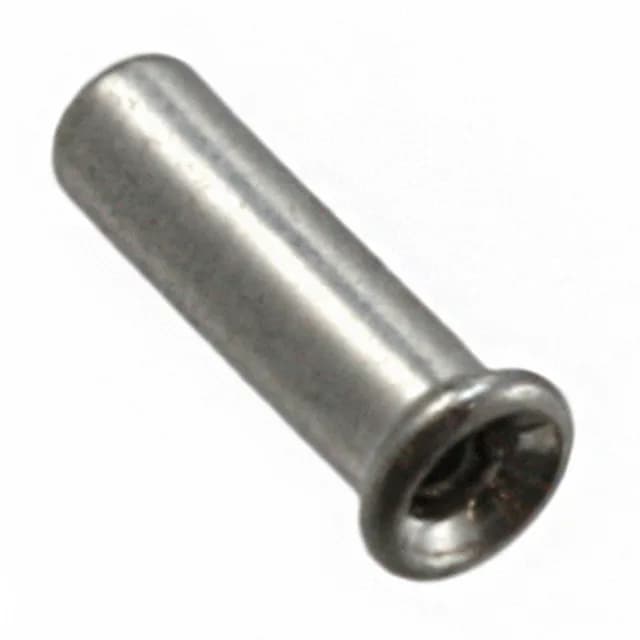

The 5050462-7 is a PCB pin socket from TE Connectivity AMP Connectors, Series 2, designed to accept pin diameters from 0.014" to 0.026" (0.36mm to 0.66mm). The beryllium copper contact material gives this socket a spring temper that holds consistent normal force across the full pin diameter range, reducing the risk of intermittent contact after repeated insertions.
Solder termination and board fit
Termination is solder, with a mounting hole diameter of 0.052" (1.32mm) and a socket depth of 0.165" (4.19mm). The closed-bottom feature prevents solder wicking into the socket body, keeping the contact cavity clear for pin insertion.
