TE Connectivity AMP Connectors 5050871-8

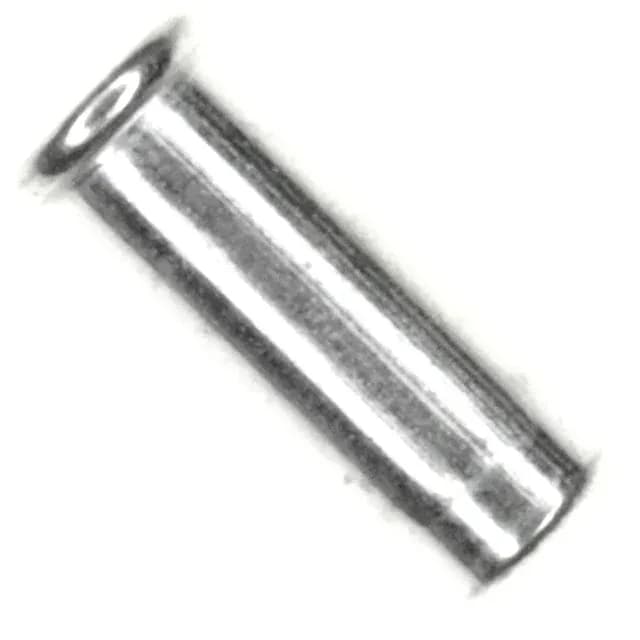

5050871-8 TE Connectivity PCB Pin Socket, Tin

MPN 5050871-8
Active

TE Connectivity AMP Series 5 PCB pin socket, 5050871-8, accepts pin diameters 0.042" to 0.049" (1.07mm to 1.24mm), tin-plated beryllium copper contact, solder termination, closed-bottom design, bulk packaging.

$0.5600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5050871-8 specifications
ParameterValue
Series5
Tail typeNo Tail
Mounting hole diameter0.101\" ~ 0.103\" (2.57mm ~ 2.62mm)
Operating temperature-65°C ~ 126°C
Socket depth0.275\" (6.99mm)
Contact materialBeryllium Copper
PackageBulk
FeaturesClosed Bottom
TerminationSolder
Contact finishTin
Flange diameter0.118\" (3.00mm)
Length - overall0.288\" (7.32mm)
Accepts pin diameter0.042\" ~ 0.049\" (1.07mm ~ 1.24mm)
Contact finish thickness100.0µin (2.54µm)

Product details

Pin diameter and contact fit

The 5050871-8: This socket accepts pin diameters from 0.042" to 0.049" (1.07mm to 1.24mm) — the range covers standard component leads and test pins in that band. The beryllium copper contact material gives it good spring retention over repeated insertions, and the 100.0µin tin finish provides a solderable surface that also resists corrosion in moderate environments.

Thermal and mounting fit

Rated from -65°C to 126°C, this socket handles thermal cycling from cold-soak to underhood heat without losing contact force. The mounting hole diameter is 0.101" to 0.103" (2.57mm to 2.62mm) — a standard #43 drill or 2.6mm PCB hole works. Solder termination with no tail means the socket sits flush on the board; the closed bottom prevents solder wicking up into the contact area.
