Power Tap for PCB Bus Distribution

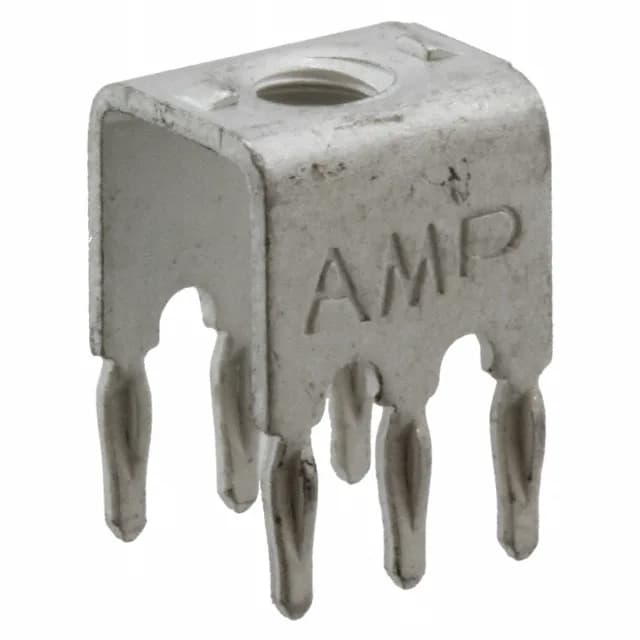

The TE Connectivity 5055323-5 is a 6-pin screw terminal power tap designed for through-hole press-fit mounting on a PCB. It carries a 15 A current rating per the terminal block spec, which means each screw position is sized for a moderate-power bus or distribution rail — not a signal line. The press-fit termination eliminates soldering, making this a rework-friendly option for backplane or power-supply board assemblies where a screw-clamp wire connection is needed at the board edge.
Screw Size and Termination Detail
The terminal uses a 6-32 screw, but the screw itself is not included with the part — order it separately if your assembly requires one. Tin plating on a power tap like this is a good match for the 15 A duty; it will handle the current without the cost premium of gold, but it is not intended for repeated disconnect-reconnect cycles.
