TE Connectivity AMP Connectors 5055556-9

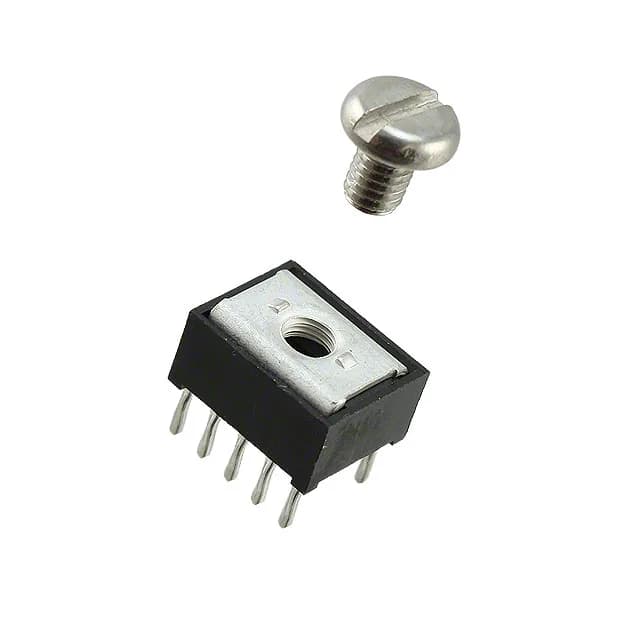

TE Connectivity 5055556-9 Power Tap, 10-Pin, M4 Screw, 25 A

MPN 5055556-9
Active

TE Connectivity power tap terminal block, 10-pin, M4 screw terminals, press-fit termination, through-hole mount, tin-plated copper alloy contacts, rated 25 A, ROHS3 compliant.

$7.1100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5055556-9 specifications
ParameterValue
MountingThrough Hole
Terminal typeScrew Terminal, Power Tap
Current rating25 A
Contact materialCopper Alloy
Material - insulationPolyamide (PA), Nylon
PackageBox
Screw sizeM4
TerminationPress-Fit
Contact finishTin
Pin count10

Product details

Power Tap Terminal Block for Bus-Level Distribution

The TE Connectivity 5055556-9 is a 10-pin power tap terminal block designed for distributing bus-level current directly on a PCB. It uses M4 screw terminals to accept ring lugs or busbars, and the press-fit termination eliminates soldering — a key advantage in backplane or power distribution assemblies where rework and high-reliability connections are required. The polyamide (PA) insulation housing provides the mechanical and thermal stability needed for sustained power duty.

Press-Fit Termination and Mounting

The through-hole mounting provides mechanical retention against the insertion force of the M4 screw terminals when torquing down wire lugs. The part ships in a Box package, typical for bulk handling of terminal blocks in production environments.

MPN
5055556-9
