TE Connectivity AMP Connectors 50845-1
MPN50845-1
Active

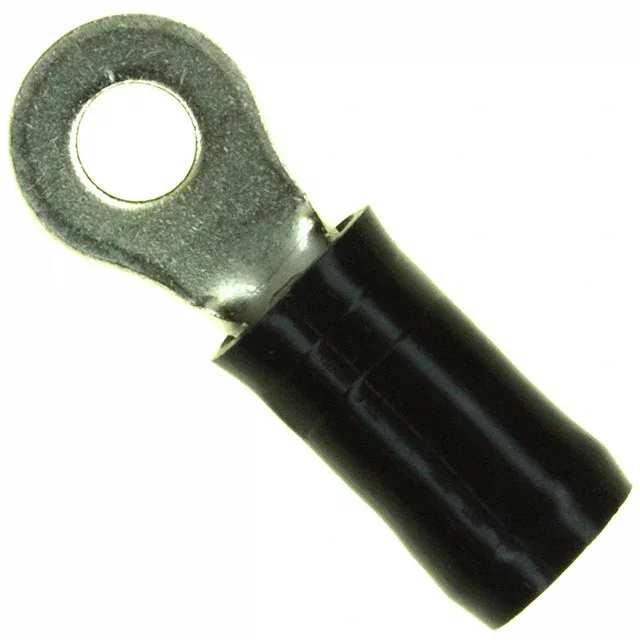

CONN RING CIRC 10-12AWG #8 CRIMP
$6.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG, Strato-Therm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG, Strato-Therm |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Black |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polytetrafluoroethylene (PTFE) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Nickel |
| Length - overall | 1.083\" (27.51mm) |
| Insulation diameter | 0.102\" ~ 0.214\" (2.59mm ~ 5.44mm) |
