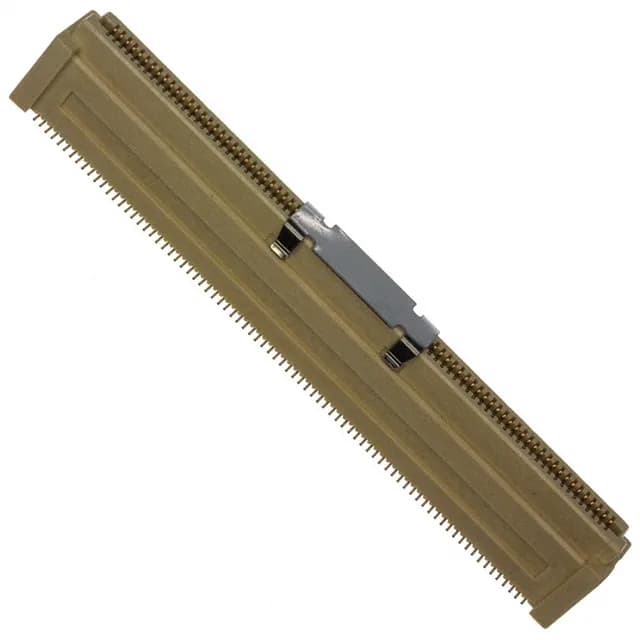

160-Position Mezzanine Receptacle at 0.80 mm Pitch
The connector mates with the matching Free Height (FH) plug to achieve one of four mated stacking heights: 13 mm, 14 mm, 15 mm, or 16 mm, giving the enclosure designer a range of z-height options without changing the PCB footprint.
What the 8.00 µin Gold Plating Means for the Duty
For a one-time board stack that stays mated through the product life, this plating grade is a cost-effective choice; if the design calls for frequent rework or field replacement of mezzanine cards, step up to a heavier gold option in the same series.
Surface Mount Assembly and Board Guide
The receptacle is surface-mount only — no through-hole version in this position count.
