TE Connectivity AMP Connectors 5084618-1 — Mezzanine & Stacking Connectors

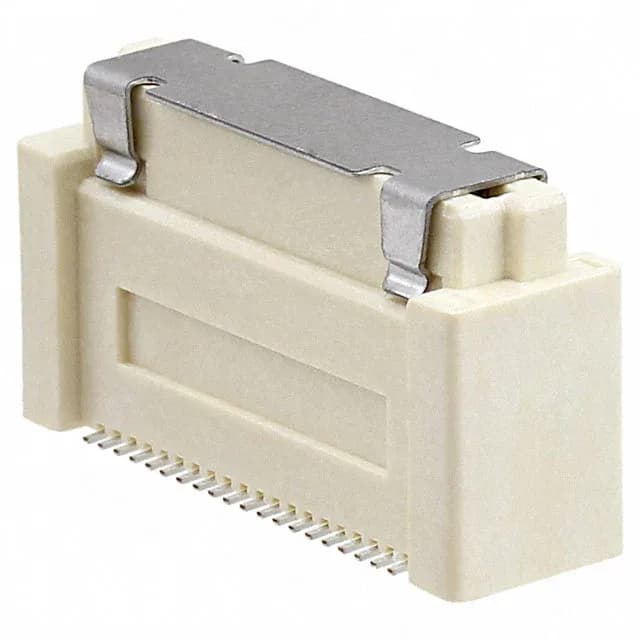

TE Connectivity 5084618-1 Free Height (FH) Receptacle

MPN5084618-1
Active

TE Connectivity Free Height (FH) receptacle, 40 positions, 0.80mm pitch, dual-row, SMT, gold 30.0µin, 13mm stack height, active.

$3.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFree Height (FH)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5084618-1 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.463\" (11.75mm)
Mated stacking heights13mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions40
Contact finish thickness30.0µin (0.76µm)

Product details

Board-to-Board Stacking with the Free Height (FH) Receptacle

That thickness is well into the range for repeated mating cycles — think field-serviceable boards or modules that get swapped during the product life.

Mounting and Board Layout Considerations

The 0.80mm pitch keeps the footprint tight, but the dual-row layout means the outer rows need matching keep-out zones on both boards. The 13mm stack height is fixed by the connector body; if your design needs a different spacing, look at other Free Height (FH) members with alternate heights.

Frequently asked questions

What is the stack height of 5084618-1?

The mated stack height is 13mm, with the receptacle standing 11.75mm above the board.
