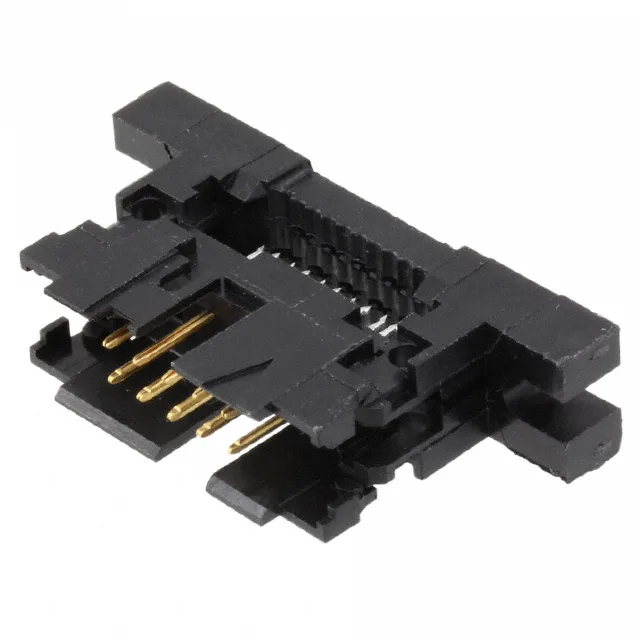

5111448-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMP-Latch 5111448-1, 10 Pos IDC Plug, 0.100" Pitch

MPN5111448-1
Active

TE Connectivity AMP-Latch series, IDC plug, 10 circuits, 2 rows, 0.100" (2.54mm) pitch, gold 30.0µin male pins, 26-28 AWG ribbon cable, panel mount, black, tray

$7.0500Ref. price · indicative, final on quote
5111448-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5111448-1 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderMale Pin
Mounting typePanel Mount
Connector typePlug
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTray
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions10
Contact finish thickness30.0µin (0.76µm)

Product details

IDC Plug for 0.100" Ribbon Cable, 10 Circuits

The TE Connectivity AMP-Latch 5111448-1 is a 10-position IDC plug built for 0.100" (2.54mm) pitch ribbon cable. It terminates 26-28 AWG round-conductor ribbon cable directly through the insulation displacement contacts, eliminating strip-and-crimp steps in the harness build.

Feed-Through Panel Mount and Housing

The housing includes a feed-through feature and is designed for panel mounting, which means the connector can pass through a panel cutout and be secured on the far side. This is useful when the ribbon cable exits an enclosure or sub-assembly and the connector needs mechanical retention separate from the header latch. The black housing is the standard colour for this series.

Position Count and Pitch — BOM Fit

At 10 positions, this plug matches the most common circuit count for 10-conductor ribbon cable.

Frequently asked questions

What is the 5111448-1 connector used for?

The 5111448-1 is a 10-position IDC plug for terminating 26-28 AWG ribbon cable. It is used to make a detachable connection between a ribbon cable and a 0.100" pitch header on a PCB, commonly found in internal computer wiring, test equipment harnesses, and control panel interconnects.

Is the 5111448-1 RoHS compliant?

Yes, the 5111448-1 is ROHS3 Compliant.
