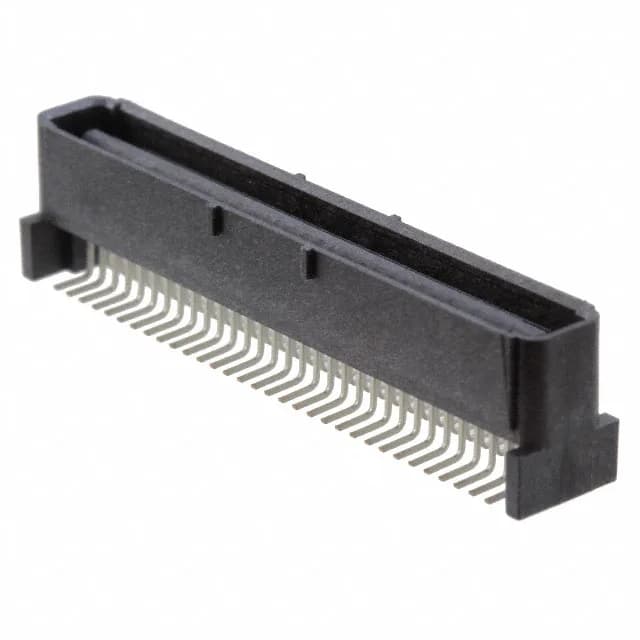

PMC Mezzanine Plug for IEEE 1386 Card Stacks
It uses a 0.039" (1.00mm) pitch in a dual-row surface-mount layout, with the contacts finished in 30.0µin gold.
Stack Height Range and Board Spacing
The 5120534-1 plug sits 0.329" (8.35mm) above the board surface. When mated with its receptacle, the pair gives you four possible stack heights: 10mm, 12mm, 13mm, or 15mm. That range covers standard PMC card clearance — pick the height that fits your enclosure or daughtercard component keep-out zone.
The 1-120532-2 is the 84-position member of the same Free Height (FH) family, sharing the same 0.039" (1.00mm) pitch and SMT mounting. The main differences: the 5120534-1 has 64 positions versus 84, a taller board height (8.35mm vs 6.35mm), and 30.0µin gold versus 50.0µin gold on the 1-120532-2. If your PMC card needs more I/O or a lower stack height, the 84-position part is the one to look at — but the 64-position plug matches the standard PMC connector footprint for most module designs.
It is RoHS compliant.
