TE Connectivity 5145323-1 Smart Card Connector, 10 Pos

MPN5145323-1
Active

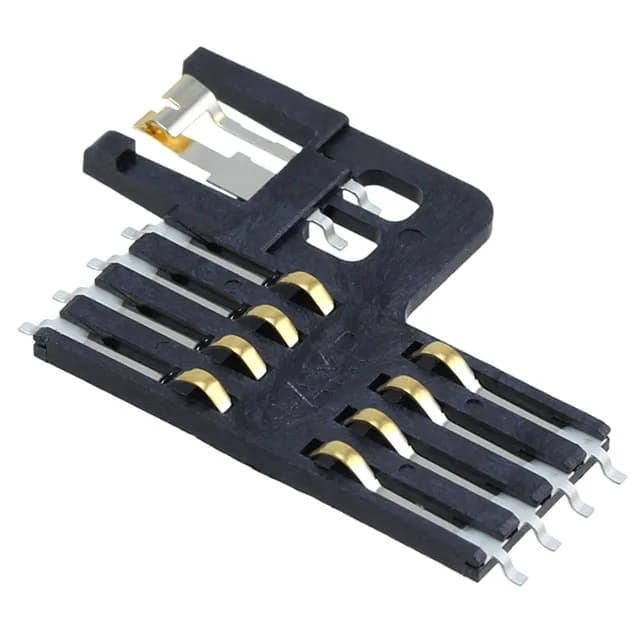

TE Connectivity 5145323-1 smart card push-pull connector, 10 (8 + 2) positions, right-angle SMT, 0.091" (2.30mm) height above board, 30.0µin gold contacts, integrated switch, ROHS3 compliant.

$3.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5145323-1 specifications
ParameterValue
Card typeSmart Card
MountingSurface Mount, Right Angle
Connector typeConnector
Mounting featureNormal, Standard - Top
Height above board0.091\" (2.30mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSwitch
Contact finishGold
Positions10 (8 + 2)
Contact finish thickness30.0µin (0.76µm)
Insertion, removal methodPush In, Pull Out

Product details

Smart-Card Interface with Integrated Card-Detect Switch

The TE Connectivity 5145323-1 is a push-pull smart card connector designed for surface-mount, right-angle installation at the board edge. It carries 10 positions arranged as 8 signal contacts plus 2 dedicated switch contacts — the switch provides a card-present detect signal to the host controller, eliminating a separate mechanical microswitch from the bill of materials. The connector accepts standard smart cards (ISO 7816 form factor) and uses a push-in, pull-out insertion and removal method. The 0.091" (2.30 mm) height above board keeps the profile low enough for slim card cages and bezel-mounted enclosures.

Board Layout Fit: Z-Height and Footprint

The 2.30 mm height above board is the dimension that governs the bezel cutout and the clearance under any overhanging components — confirm your card-slot opening matches this z-height before laying out the board edge. The SMT termination suits reflow assembly and eliminates through-hole solder waves for the card-reader subassembly.

Frequently asked questions

What is the height above board of 5145323-1?

The height above board is 0.091" (2.30 mm). This is the vertical clearance from the PCB surface to the top of the connector body — the critical dimension for bezel fit and enclosure clearance.

Is 5145323-1 RoHS compliant?

Yes, it is ROHS3 compliant. No RoHS exemptions apply, so it can be used in equipment destined for EU markets without additional paperwork.

What does the switch feature do in 5145323-1?

The integrated switch provides a card-present detect signal. The 10-position layout allocates 8 contacts for the smart-card signal lines and 2 contacts for the switch circuit — the switch closes or opens when a card is fully inserted, giving the host controller a hardware card-detect flag without a separate sensor.
