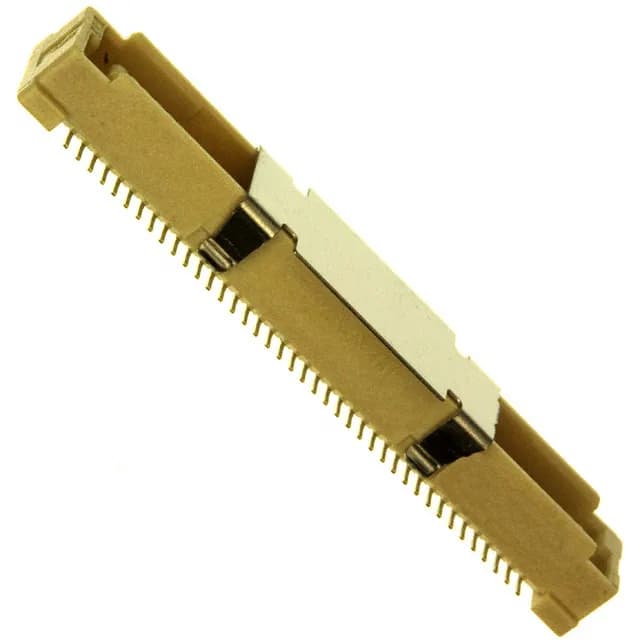

Board-Stacking Interconnect for Dense Mezzanine Designs
The plug mates with a matching FH receptacle to achieve any of four mated stacking heights — 5 mm, 9 mm, 13 mm, or 17 mm — from a single plug order code, which simplifies BOM management across a product family with varying board-spacing requirements. The 4.60 mm above-board height keeps the plug profile low, fitting within slim enclosures when mated to a low-height receptacle.
SMT Termination and Board-Guide Alignment
Surface-mount termination matches standard reflow soldering processes — the plug side requires no secondary hand-soldering step. An integral board guide on the plug body takes shear forces off the signal contacts during blind-mate assembly, a practical reliability feature for production lines where the mezzanine boards are stacked without visual alignment.
