TE Connectivity AMP Connectors 5177985-6

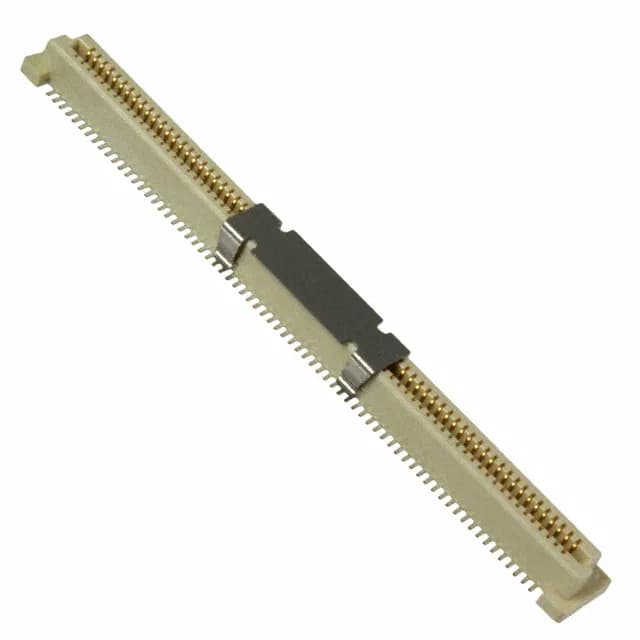

TE Connectivity 5177985-6 Free Height Receptacle, 140 Pos

MPN 5177985-6
Active

TE Connectivity Free Height (FH) receptacle, 140 positions, 0.80 mm pitch, dual-row, surface mount, gold-plated contacts, mated stacking heights 5 mm, 6 mm, 7 mm, 8 mm.

$10.8000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5177985-6 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Mated stacking heights5mm, 6mm, 7mm, 8mm
Pitch0.031\" (0.80mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions140
Contact finish thickness8.00µin (0.203µm)

Product details

Board-Stacking Interconnect for Dense Mezzanine Designs

Stack Height Flexibility with One Receptacle

A single 5177985-6 receptacle covers four mated stacking heights: 5 mm, 6 mm, 7 mm, and 8 mm. The board designer picks the plug height to set the final gap — no need to qualify a different receptacle for each board stack-up.

For designs requiring higher cycle life or corrosive exposure, a thicker gold or selective plating variant in the FH family would be the better fit.
