TE Connectivity AMP Connectors 51863-1 — Ring Terminals

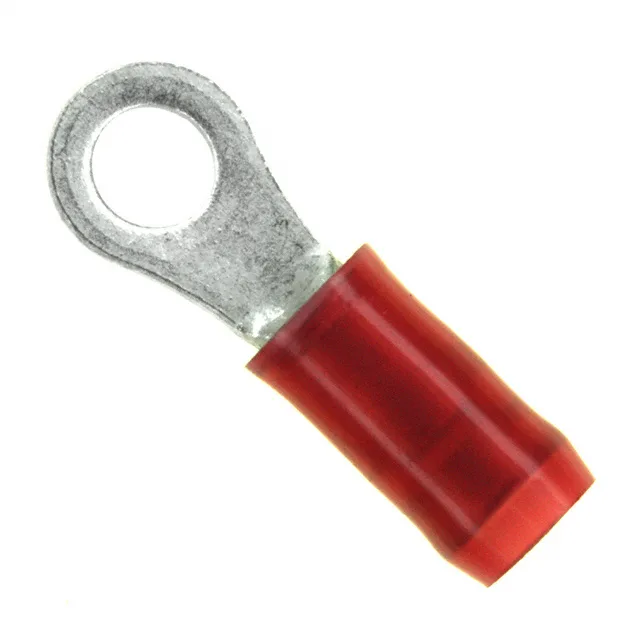

51863-1 PIDG Ring Terminal, 16-22 AWG, #6 Stud, Tin

MPN51863-1
Active

TE Connectivity PIDG ring terminal, order code 51863-1, circular, #6 stud, 16-22 AWG, insulated, tin-plated copper, 0.031" (0.79mm) thickness, serrated termination, free hanging, crimp termination.

$0.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 51863-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

51863-1 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.250\" (6.35mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.782\" (19.86mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

Insulated ring terminal for 16-22 AWG

The 51863-1 is a PIDG-series insulated ring terminal accepting 16-22 AWG wire with a #6 stud size, tin-plated copper contact, and serrated termination for grip on the conductor. Overall length is 0.782" (19.86mm) with a 0.031" (0.79mm) thickness and an insulation diameter range of 0.080" to 0.125" (2.03mm to 3.18mm).

Outer width variation across the PIDG series

The 51863-1 has a 0.250" (6.35mm) outer width; the sibling 2-36151-2 measures 0.281" (7.14mm) and the 2-36149-2 and 2-36150-1 each measure 0.218" (5.54mm) — all share the same 0.031" (0.79mm) thickness, 16-22 AWG range, #6 stud, and tin-plated copper contact.

Frequently asked questions

What is the color of the 51863-1 insulation?

The insulation is red, as standard for the PIDG series for 16-22 AWG terminals.

Does the 51863-1 drop into a panel specified around the 2-36151-2 without rewiring?

Both terminals share the same 16-22 AWG range, #6 stud size, and 0.031" (0.79mm) thickness, but the 2-36151-2 has a wider outer edge at 0.281" (7.14mm) versus 0.250" (6.35mm) for the 51863-1 — the panel hole pattern and clearance must accommodate the larger width before direct substitution.
