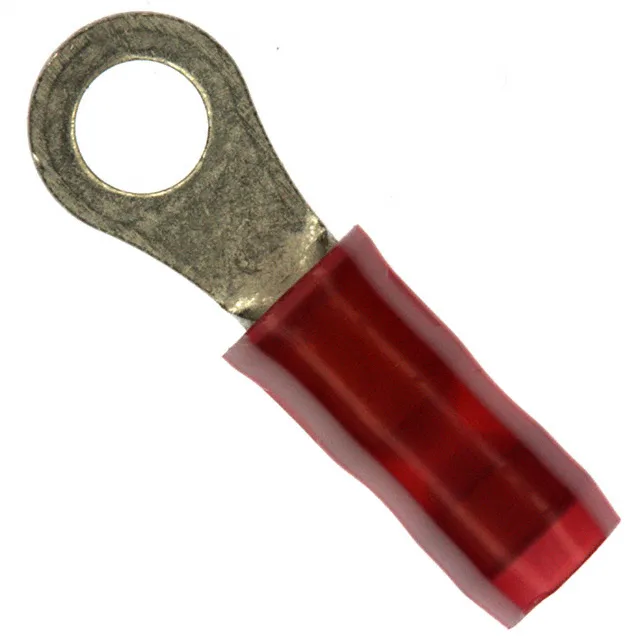

TE Connectivity AMP Connectors 51863-3
MPN51863-3
Active
CONN RING CIRC 20AWG #6 CRIMP
$0.5700Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 20 AWG |
| Color | Red, Red Stripe |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.844\" (21.44mm) |
| Insulation diameter | 0.046\" ~ 0.110\" (1.17mm ~ 2.79mm) |
