TE Connectivity AMP Connectors 51864-9 — Ring Terminals

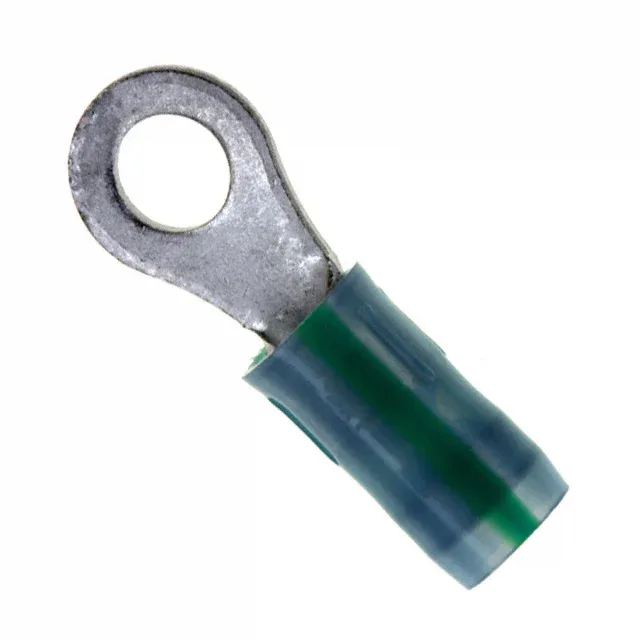

TE PIDG 51864-9 Ring Terminal, 14 AWG, #10 Stud, Tin

MPN51864-9
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 51864-9, 14 AWG, #10 stud, circular, tin-plated copper, insulated, 0.031" (0.79mm) thick, free hanging, crimp termination.

$0.7900Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

51864-9 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14 AWG
ColorBlue, Green Stripe
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesInsulation Restriction
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.906\" (23.01mm)
Insulation diameter0.078\" ~ 0.130\" (1.98mm ~ 3.30mm)

Product details

PIDG ring terminal for 14 AWG

The 51864-9: The tin-plated copper contact and insulated nylon barrel suit general-purpose power and signal termination in free-hanging applications.

Stud size and color coding across the series

Within the PIDG series the 51864-9 (#10 stud) sits alongside the 52274-1 (#4 stud) and the 1-51864-5 (#10 stud, tape-and-reel packaging). All three share the same 14 AWG wire gauge, 0.031" thickness, tin finish, and insulated nylon housing — the stud size and packaging are the selection variables.

Frequently asked questions

Will 51864-9 drop into a panel specified for 52274-1?

No — 51864-9 uses a #10 stud, while 52274-1 uses a #4 stud. The ring terminal ID differs; the panel stud must match the terminal stud size.
