TE Connectivity AMP Connectors 51943

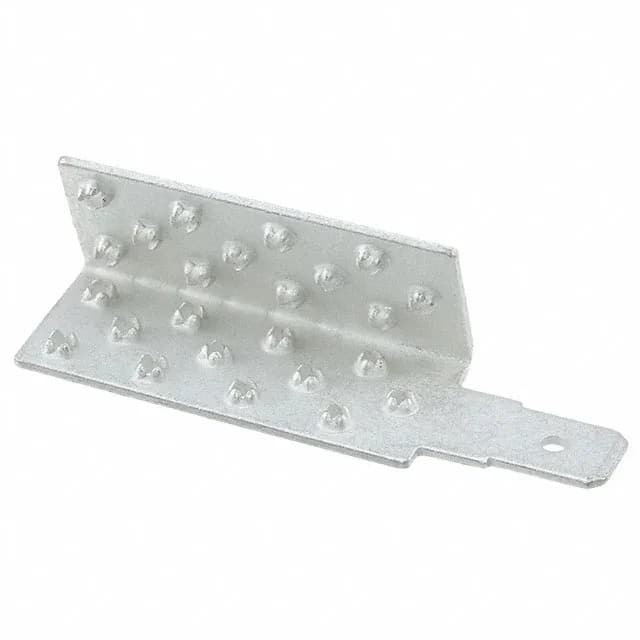

51943 TE Connectivity Termi-Foil Double Face Tin Terminal –

MPN 51943
Active

TE Connectivity AMP Connectors Termi-Foil, 51943, double face terminal, tin finish, foil crimp area 1.125" x 0.505" (28.58mm x 12.83mm), overall length 1.625" (41.28mm), copper contact material, bulk package.

$1.9300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesTermi-Foil
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

51943 specifications
ParameterValue
SeriesTermi-Foil
Terminal typeDouble Face
Contact materialCopper
PackageBulk
Contact finishTin
Foil crimp area1.125\" x 0.505\" (28.58mm x 12.83mm)
Length - overall1.625\" (41.28mm)

Product details

Termi-Foil double face terminal – what it is

The tin-plated copper contact gives a reliable electrical connection at a moderate mating cycle count — suitable for applications where the terminal is crimped once and left in place, like power distribution or battery interconnects inside equipment. The foil crimp area measures 1.125" x 0.505" (28.58mm x 12.83mm), which sets the foil width and thickness it can accept. Overall length is 1.625" (41.28mm). These dimensions are the key fit check: the terminal must match the foil ribbon's cross-section and the available clearance in the assembly.

Fit and cross-reference notes

This terminal belongs to the Termi-Foil series, which includes other double-face terminals with different crimp areas and overall lengths. The base product number 5194 covers the family — the full 51943 suffix specifies the exact foil crimp area and finish. No direct pin-compatible alternative is listed; the closest match would be another Termi-Foil terminal with matching foil crimp dimensions, but the buyer must verify the crimp area and overall length against the BOM.

MPN
51943
