TE Connectivity AMP Connectors 52041 — Ring Terminals

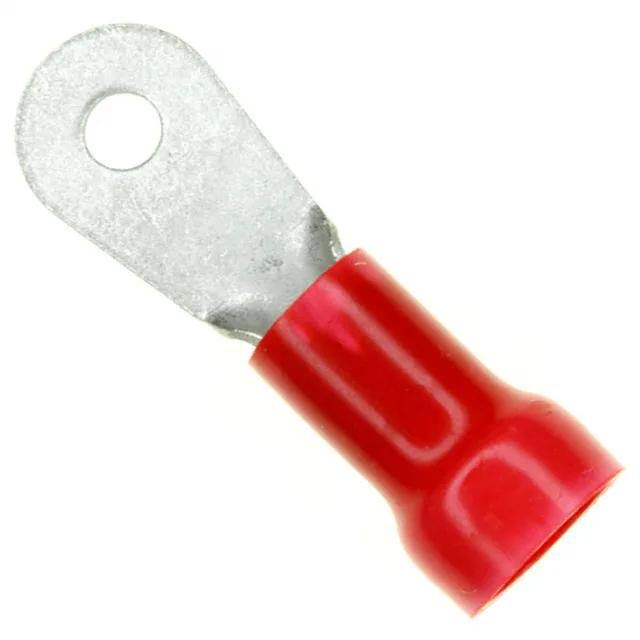

TE Connectivity 52041 Plasti-Grip Ring Terminal, 8 AWG

MPN52041
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 52041, 8 AWG, #8 stud, circular, tin-plated copper, 0.040" (1.02mm) thick, insulated, crimp termination, free hanging.

$0.9500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

52041 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge8 AWG
ColorRed
Contact materialCopper
Width - outer edges0.478\" (12.14mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBulk
FeaturesSerrated Termination
Thickness0.040\" (1.02mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall1.586\" (40.28mm)
Insulation diameter0.360\" (9.14mm)

Product details

Ring terminal for 8 AWG on a #8 stud

The 52041 is the 8 AWG member of TE's Plasti-Grip ring terminal line, accepting a #8 stud size with a circular terminal shape. Tin-plated copper contact material with a serrated termination barrel for conductor grip; the PVC insulation is color-coded red for 8 AWG.

Dimensions and wire fit

Overall length is 1.586" (40.28 mm), with outer edge width 0.478" (12.14 mm) and insulation diameter 0.360" (9.14 mm). The 0.040" (1.02 mm) thickness suits the #8 stud stack-up.
