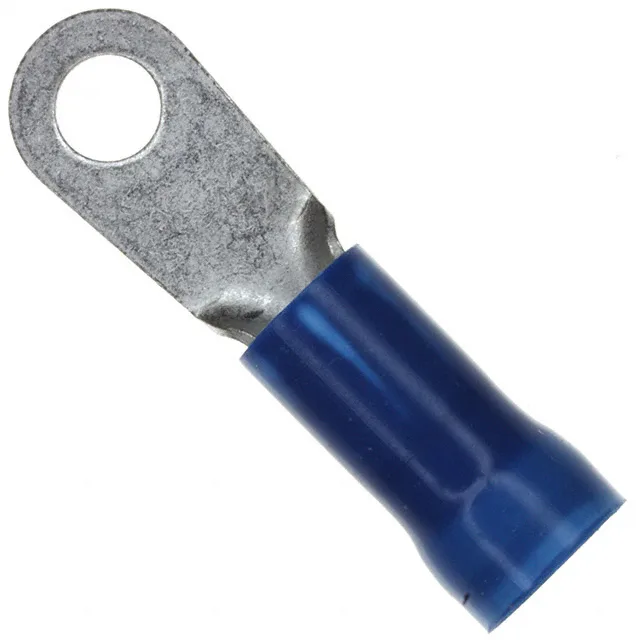

TE Connectivity AMP Connectors 52042-9
MPN52042-9
Active
CONN RING CIRC 6AWG #1/4 CRIMP
$1.3786Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 6 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.500\" (12.70mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) |
| Features | Serrated Termination |
| Thickness | 0.045\" (1.14mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.869\" (47.47mm) |
| Insulation diameter | 0.360\" (9.14mm) |
