The 520467-1 mates with SDL connectors that carry a 16-position contact arrangement. The shield bottom snaps onto the connector housing before the assembly is mounted to the board. It is not a standalone connector — it is the metal enclosure piece that wraps the underside of the SDL connector. Verify that your SDL connector body is a 16-position variant and that the shield top (the upper half) is ordered separately to complete the shield enclosure.

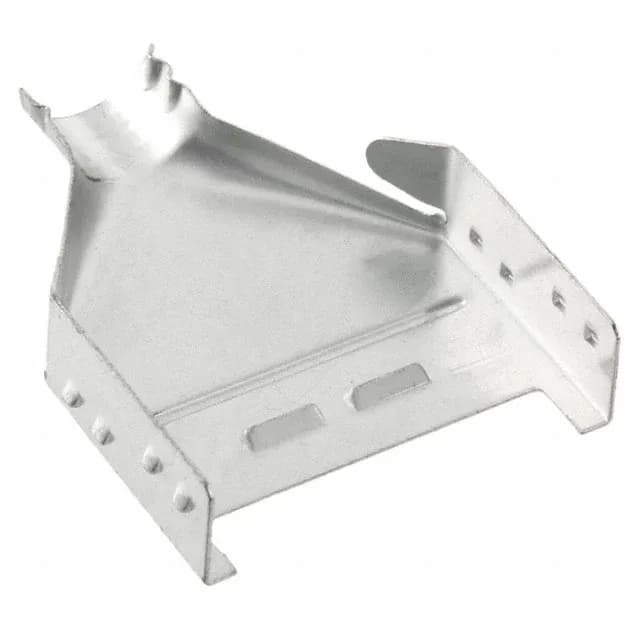

TE Connectivity 520467-1 SDL Shield Bottom, 16 Pos, Active
MPN520467-1
Active
TE Connectivity SDL shield bottom, 16 positions, for SDL connectors, bulk package, ROHS3 compliant.
$3.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Accessory type | Shield, Bottom |
| Package | Bulk |
| For use with (Related products) | SDL Connectors |
Product details
Frequently asked questions
Is the 520467-1 compatible with all SDL connectors?
The 520467-1 is designed for use with SDL connectors, but specifically for 16-position variants. It is the shield bottom half; the corresponding shield top must also be ordered. Check that your SDL connector is a 16-position type before specifying this shield bottom.
