TE Connectivity AMP Connectors 5205208-1 — D-Sub & D-Shaped Connectors

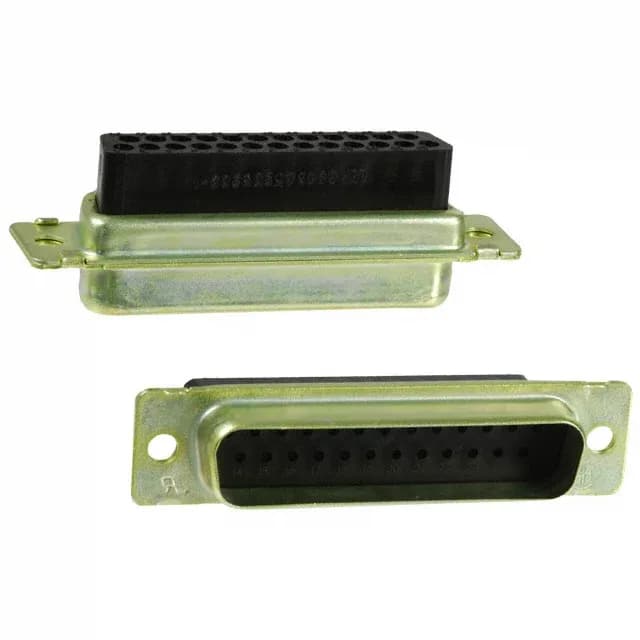

TE 5205208-1 AMPLIMITE HDP-20 D-Sub Plug Housing, 25 Pos

MPN5205208-1
Active

TE Connectivity AMPLIMITE HDP-20, D-Sub plug housing, 25 positions, 2 rows, free-hanging (in-line), steel yellow chromate zinc shell, unthreaded flange, black glass-filled nylon, contacts not included.

$2.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5205208-1 specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout3 (DB, B)
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Yellow Chromate Plated Zinc
NoteContacts Not Included
PackageBulk
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Shell finish thickness200µin (5.08µm)

Product details

The housing is black glass-filled nylon (PA, glass filled) with a steel shell finished in yellow chromate zinc at 200 µin thickness, giving it corrosion resistance for industrial cabinet or equipment-room environments. The flange is unthreaded, meaning it uses slide-lock or friction retention rather than jackscrews.

Critical Procurement Detail: Contacts Not Included

The housing ships empty — no contacts are included. The contact type is signal.

This plug housing accepts male crimp contacts (signal type) and terminates to discrete wires. The free-hanging design means the connector is not board-mounted — it lives on the cable end, often panel-mounted via the shell flange or left floating in a harness. The unthreaded flange means no jackscrews; retention relies on the mating connector's latch or a separate locking mechanism.

Frequently asked questions

Does 5205208-1 include contacts?

No. The housing ships without contacts. You must order the matching male crimp terminals separately from the AMPLIMITE HDP-20 terminal line.

Is 5205208-1 RoHS compliant?

Yes, it is ROHS3 compliant, meeting the latest EU RoHS directive requirements.

What is the mating connector for 5205208-1?

It mates with any standard DB-25 D-Sub receptacle (shell size 3, layout DB, B) that accepts male contacts. The mating half is a 25-position receptacle housing from the AMPLIMITE HDP-20 series or equivalent.
