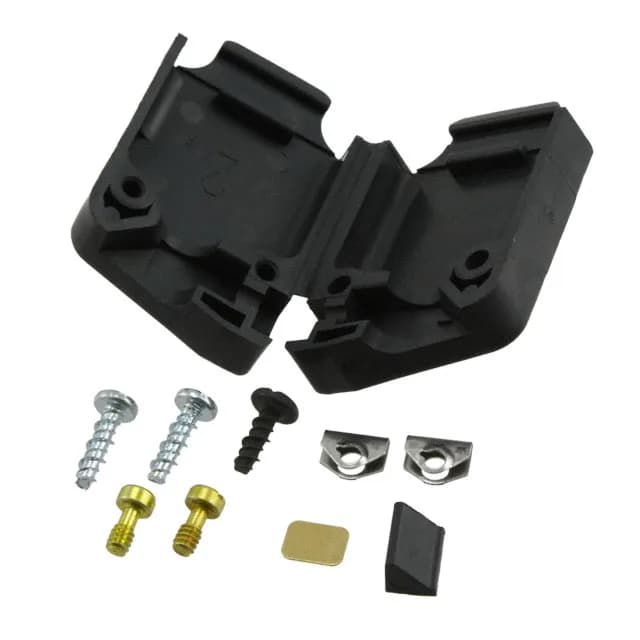

TE AMPLIMITE HD-20 5206478-2, 15-Pos Hinged Backshell

MPN5206478-2
Active

TE Connectivity AMPLIMITE HD-20 hinged backshell, 15 positions, 45° and 180° cable exit, black thermoplastic, includes 4-40 mating screws and strain relief hardware, unshielded.

$6.1100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5206478-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5206478-2 specifications
ParameterValue
SeriesAMPLIMITE HD-20
Cable typeRound
Accessory typeHinged Backshell
Cable exit45°, 180°
ColorBlack
MaterialThermoplastic
Primary materialPlastic
PackageBag
FeaturesMating Screws 4-40
HardwareAssembly Hardware, Strain Relief
ShieldingUnshielded
Positions15
Compatible D-Sub size15pos and HD26pos
Compatible shell sizeA

Product details

Hinged Backshell for 15-Position D-Sub, Dual Exit Angles

The TE Connectivity 5206478-2 is a hinged backshell from the AMPLIMITE HD-20 series, designed to fit standard 15-position D-sub connectors as well as HD-26 position shells sharing the same shell size A. It accepts round cable and offers both 45° and 180° cable exit options, giving the harness builder flexibility in routing the cable bundle away from the connector. The housing is molded from black thermoplastic and comes with the assembly hardware — including 4-40 mating screws and a strain relief clamp — already in the bag.

15-Position Fit, Shell Size A

This backshell is specced for 15 positions and compatible D-sub size 15pos and HD26pos, both sharing shell size A. That means it fits the standard DB-15 footprint as well as the higher-density HD-26 shell that uses the same outer dimensions — a useful cross-compatibility if you're standardizing on one backshell for two connector densities.

Frequently asked questions

Where can I buy 5206478-2 available via RFQ confirmation?

Current pricing and stock availability are confirmed at quote time — submit an RFQ for your target quantity and lead time.

Is 5206478-2 compatible with standard 15-pin D-sub connectors?

Yes, the 5206478-2 is designed for 15-position D-sub connectors (shell size A) and also fits HD-26 position connectors that share the same shell size A. It includes the 4-40 mating screws and strain relief hardware needed for a standard D-sub assembly.

What is the difference between 5206478-2 and 5206478-1?

The 5206478-2 is the 15-position variant of the same hinged backshell design, while the 5206478-1 is the 9-position version. Both use shell size A, share the same black thermoplastic housing, dual 45°/180° cable exit, and include 4-40 mating screws and strain relief hardware.
