9-Position DE-9 Shell, 6A Signal Duty

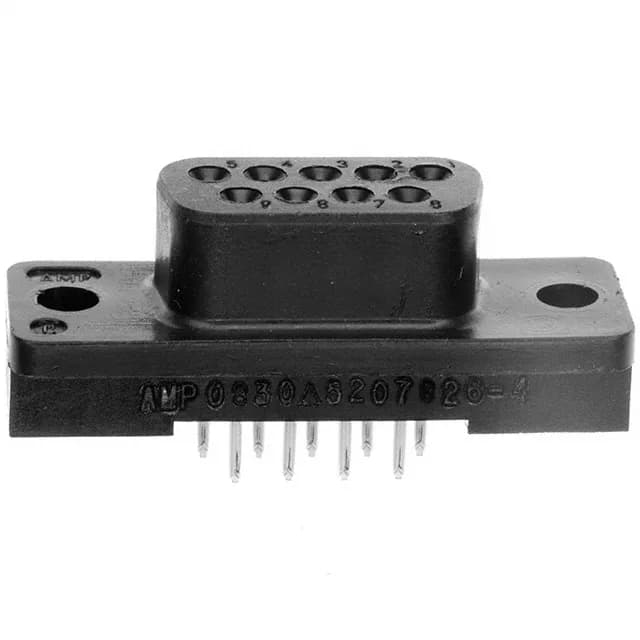

The TE Connectivity 5207826-4 is a 9-position D-Sub receptacle from the AMPLIMITE HD-20 series, laid out in the standard DE-9 shell size (1, DE, E per the connector layout). The 9 circuits match the most common serial-port and industrial-signal pin count; if your BOM calls for 9 positions, this is the footprint you need.
Mounting and Termination — Vertical Solder, Through Hole
Termination is vertical solder through hole — the contacts are soldered directly into the PCB, and the unthreaded housing flange provides a mechanical anchor to the board or panel. The package is tube, which is typical for machine-insertion lines — the tube feeds directly into a tube feeder on a selective-solder or wave-solder line.
