15-Position D-Sub Receptacle, Vertical Solder Termination

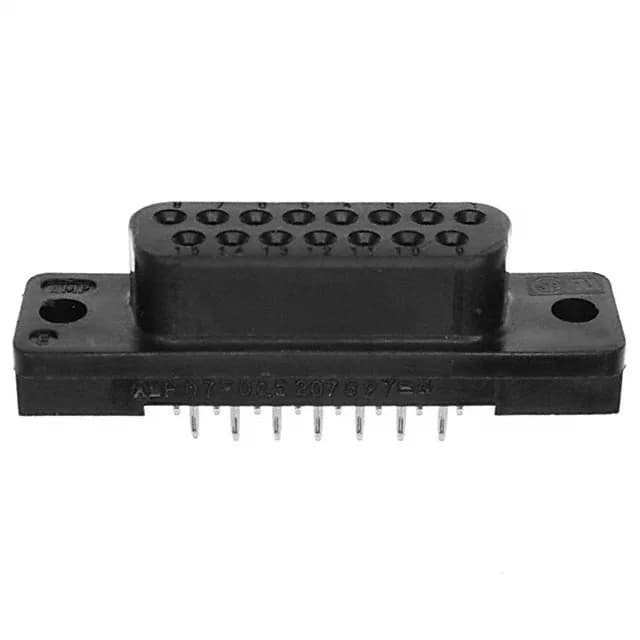

The TE Connectivity AMPLIMITE HD-20 5207827-4 is a 15-position D-sub receptacle with female sockets arranged in two rows. The 6A figure is typical for signal-level D-sub contacts at this density — adequate for RS-232, RS-485, low-power sensor lines, or control signals. For higher-current circuits, the same shell size is available with mixed-power contacts, but this standard 15-position variant keeps the BOM simple for all-signal harnesses.
Mates with any standard 15-pin D-sub plug (male) having the same DA shell layout. The flange on this receptacle is unthreaded (housing/shell, unthreaded), so the mating plug should carry the threaded insert or screwlock hardware to secure the pair. Mounting is through-hole vertical — the solder tails insert into a PCB and are wave-soldered. The row spacing and contact pitch are standard for DA-size D-subs, so the PCB footprint matches any 15-pin D-sub receptacle.
