TE Connectivity AMP Connectors 5207871-1 — D-Sub & D-Shaped Connectors

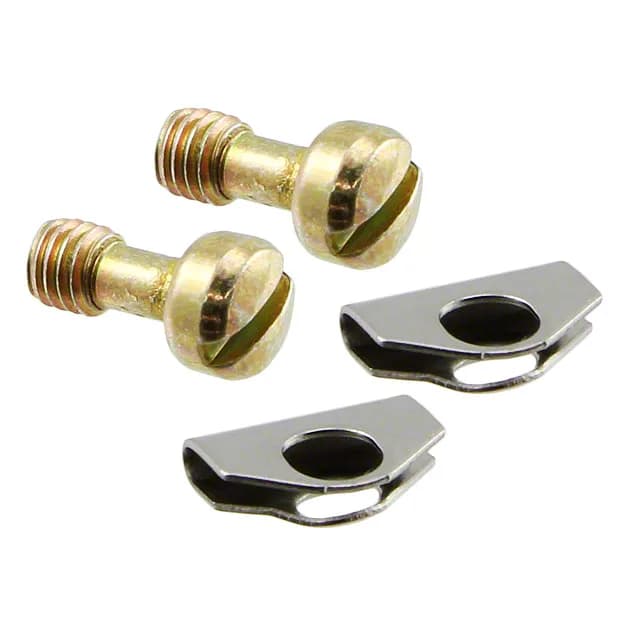

TE AMPLIMITE 5207871-1 D-Sub Jackscrew, M3 Thread

MPN5207871-1
Active

TE Connectivity AMPLIMITE series jackscrew, slotted, M3 thread, 0.230" (5.84mm) length below head, bag packaging, clip feature.

$7.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5207871-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5207871-1 specifications
ParameterValue
SeriesAMPLIMITE
Accessory typeJackscrew, Slotted
PackageBag
FeaturesClip
Connector sizeM3
Length - below head0.230\" (5.84mm)
For use with (Related products)AMPLIMITE Series HDE, HDP

Product details

D-Sub Jackscrew, M3 Thread — AMPLIMITE Series

The TE Connectivity AMPLIMITE 5207871-1 is a slotted male jackscrew retainer for D-subminiature connectors. It carries an M3 thread — the metric standard for D-sub hardware on equipment built outside the inch-based 4-40 world. This jackscrew is designed for use with AMPLIMITE Series HDE and HDP D-sub housings — the standard metal-shell HD-20 and HD-22 families that take crimp-snap contacts. The clip feature retains the screw in the housing so it doesn't fall out during field mating.

Frequently asked questions

What is the thread size of 5207871-1?

The 5207871-1 uses an M3 thread — a metric jackscrew for D-sub connectors.

Is 5207871-1 compatible with AMPLIMITE HDE and HDP series?

Yes, the 5207871-1 is designed for use with AMPLIMITE Series HDE and HDP D-sub housings.

Can 5207871-1 be used as a replacement for other jackscrews?

The 5207871-1 is a functional alternative to the 5205980-5, 5205980-3, and 5205980-1 jackscrews, but the thread differs — M3 on this part versus 4-40 on those. Verify your panel or receptacle thread before substituting.
