DE-9 Plug with Through-Hole Solder Tails

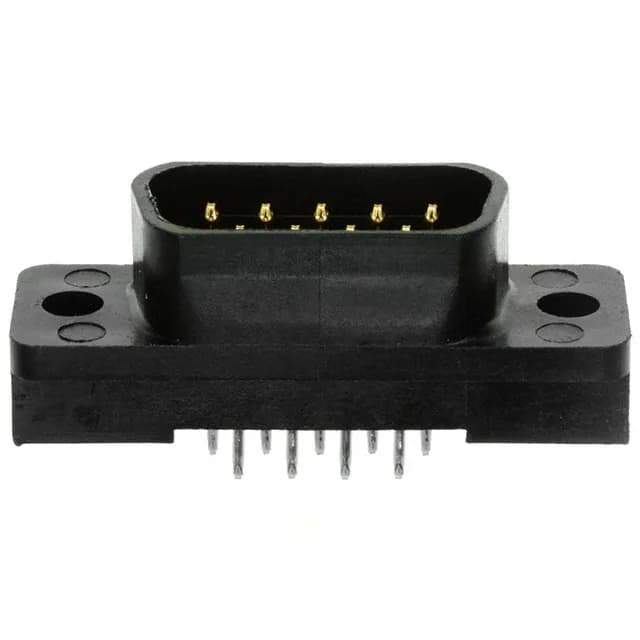

The TE Connectivity 5208006-2 is a 9-position D-Sub plug from the AMPLIMITE HD-20 series, shell size 1 (DE, E) — the standard DE-9 layout for RS-232 serial ports, industrial control interfaces, and instrumentation links. The two-row arrangement with through-hole solder tails mates with any standard DE-9 receptacle housing.
6 A per Contact — Signal-Class Current Capacity
The gold flash plating is suited for low mating-cycle applications.
Listed as Active in production with RoHS compliance (per). No last-time-buy or phase-out notice on record. The unthreaded flange accepts standard DE-9 hardware (4-40 jackscrews) for panel retention.
Position Count and Shell Size Define the Mating Half
The 9-position count and shell size 1 (DE, E) mean this plug mates exclusively with a DE-9 receptacle — not a DB-25 or DC-37. The pinout follows the standard D-Sub assignment for 9 positions (pins 1-9 in two rows); confirm the mating receptacle's contact arrangement matches your circuit map before committing the BOM line.
