TE Connectivity AMP Connectors 5208008-2

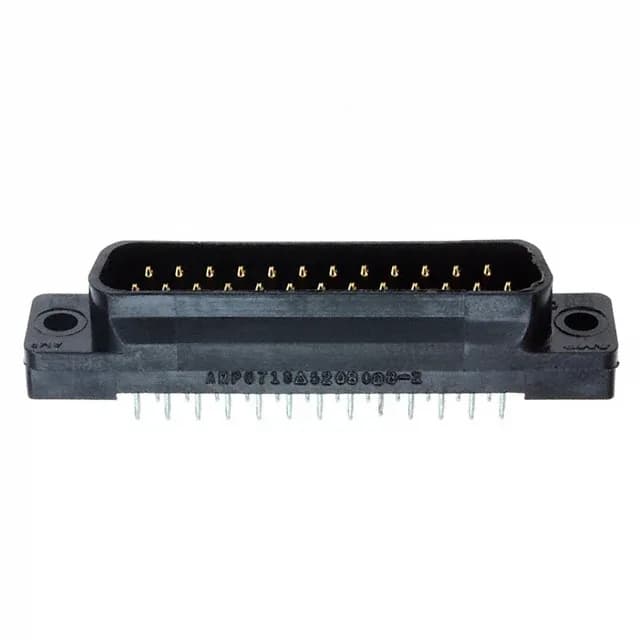

TE Connectivity 5208008-2, AMPLIMITE HD-20 DB-25 D-Sub Plug

MPN 5208008-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 25 circuits, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, UL94 V-0, shell size DB-25.

$11.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5208008-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Material flammability ratingUL94 V-0

All specifications

5208008-2 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thicknessFlash

Product details

DB-25 Vertical Solder Plug — 6A per Contact, Gold Flash

The TE Connectivity 5208008-2 is a 25-position D-Sub plug from the AMPLIMITE HD-20 series, configured as a vertical through-hole solder termination with male pins.

Operating Range and Environment

The unthreaded housing/shell flange means this plug uses a slide-lock or screw-lock hardware kit — the hardware is not integral, so factor in the mating hardware when ordering for a panel-mount application.

MPN
5208008-2
