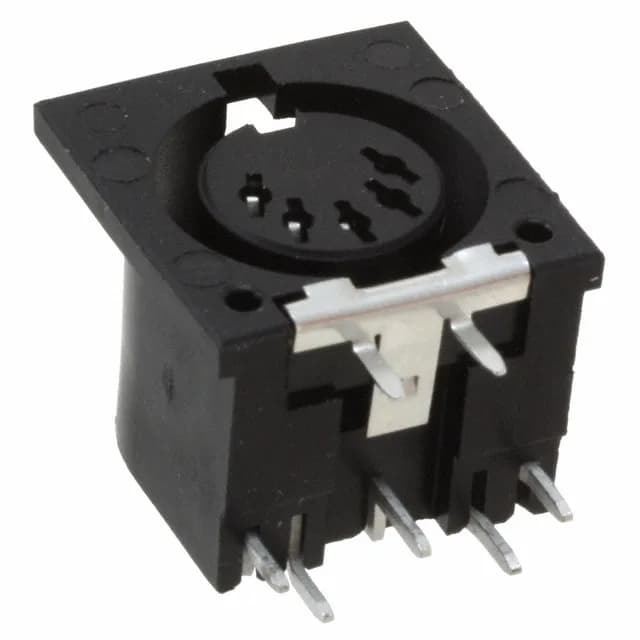

TE Connectivity, DIN 180° receptacle, 5211450-1, 5 positions, 7.5A, 250VAC, through-hole right-angle, tin-plated brass contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 105°C |
| Shell material | Polyamide (PA), Nylon, Glass Filled |
| Insert material | Polycarbonate (PC) |
| Contact material | Brass |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Parameter | Value |
|---|---|
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio |
| Positions | 5 |
| Shell size - insert | DIN (180 Degree) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 7.5A per-contact rating and 250VAC voltage rating cover line-level audio signals and moderate power distribution in consumer or pro-audio gear.
The glass-filled nylon shell (UL94 V-0) and polycarbonate insert provide flame-rated insulation for equipment inside an enclosure.
Submit a request for your BOM quantity to receive current pricing and availability — confirmed at quote time. No stock-holding claim is made on this listing.
The 5211450-1 uses the standard DIN 180-degree pin circle arrangement for 5 positions. The shell keying and contact layout follow the DIN 41524 specification — confirm the specific pin assignment against your mating plug's wiring diagram, as audio pinouts vary by application (e.g., MIDI vs. stereo line-level).
Yes, the 5211450-1 is listed with Audio in the applications field. The 7.5A contact rating and 250VAC voltage rating provide ample headroom for line-level and speaker-level signals. The tin-plated contacts are suitable for the moderate mating cycles typical of fixed audio installations.
