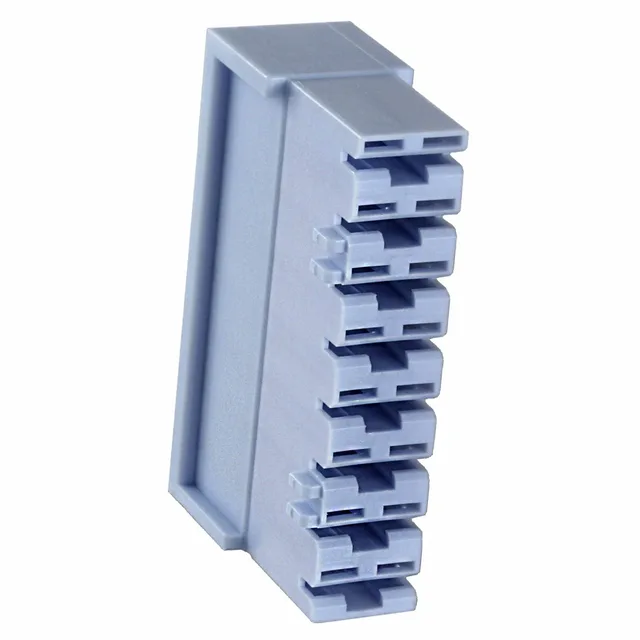

TE Connectivity AMP Mark III housing, order code 521210-1, 8 positions, female receptacle, 0.250" (6.35 mm) quick-connect terminal size, free-hanging in-line mount, blue nylon, bulk package, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Blue |
| Material | Nylon |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Female, Receptacle |
| Package | Bulk |
| Stacking direction | Top to Bottom |
| Positions | 8 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 521210-1 is an 8-position female receptacle housing in TE Connectivity AMP's Mark III series, designed for 0.250" (6.35 mm) quick-connect terminals. The blue nylon housing mounts free-hanging (in-line) and stacks top-to-bottom; contacts are not included and must be ordered separately.
The 521210-1 is a housing only — the quick-connect terminals are not supplied and must be sourced separately.
The 521210-1 is ROHS3 compliant per the manufacturer's listing.
