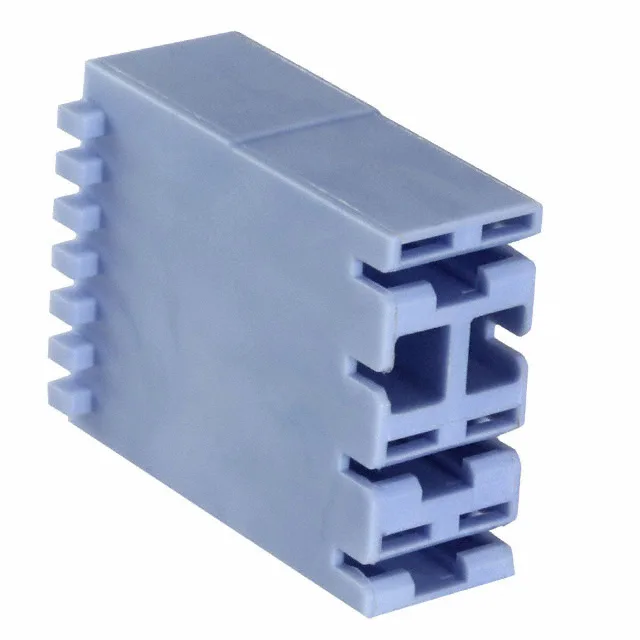

TE Connectivity Mark III housing, order code 521295-1, 4 positions, female receptacle, 0.250" (6.35mm) quick disconnect terminal, free hanging in-line mount, blue nylon housing, bulk package.
| Parameter | Value |
|---|---|
| Series | Mark III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Blue |
| Material | Nylon |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Female, Receptacle |
| Package | Bulk |
| Stacking direction | Top to Bottom |
| Positions | 4 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 521295-1 is a 4-position female receptacle housing in TE Connectivity's Mark III series, designed for 0.250" (6.35mm) quick-connect tab terminals. The blue nylon body mounts free-hanging (in-line) and stacks top-to-bottom for multi-circuit gang assemblies. Contacts are not included — order the matching 0.250" quick-connect terminals separately.
The housing ships without contacts. The matching 0.250" (6.35mm) quick-connect terminals must be ordered separately.
The 521295-1 is ROHS3 compliant.
