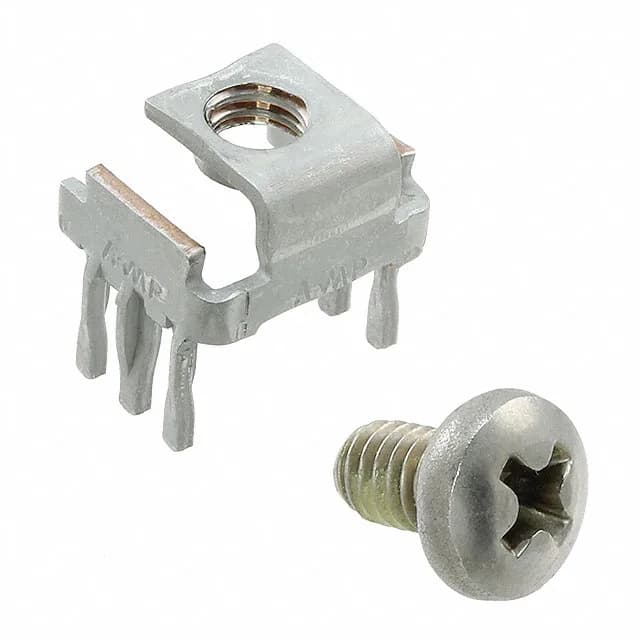

The TE Connectivity 5213816-1 is a 6-pin screw terminal — a power tap that lands a ring lug or spade terminal onto a PCB through an M4 screw. The 20 A per-terminal rating means each position carries a solid power circuit, not a signal line. Press-fit termination pushes the phosphor bronze pins into plated through-holes without solder, which makes the assembly rework-friendly and avoids heat damage to the board during installation. The tin contact finish suits moderate mating-cycle duty in a permanent or semi-permanent power connection.
Termination and Mounting — Press-Fit, No Solder
The through-hole mounting gives a mechanical anchor that handles the torque of tightening the M4 screw against a ring lug. The steel screw is captive in the terminal body; the buyer gets the screw with the part. For PCB thickness, the press-fit pin is designed for standard 1.6 mm to 2.4 mm boards — the interference fit holds the pin in the hole without secondary retention.
