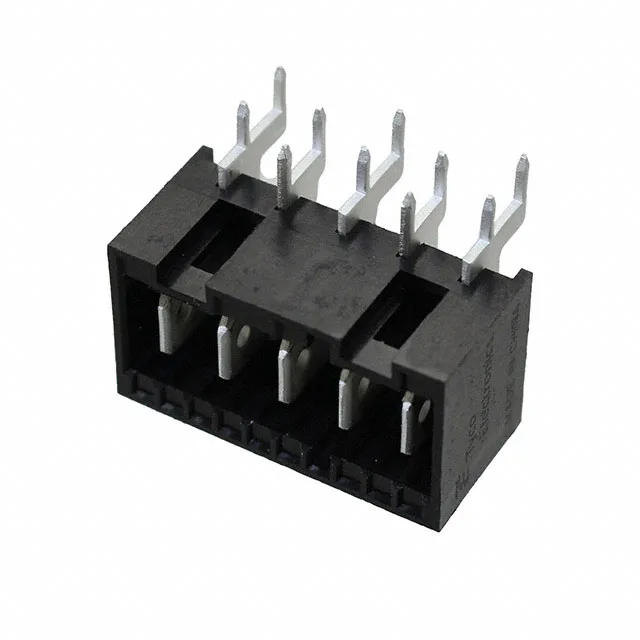

TE Connectivity AMP Connectors Faston header, order code 521384-5, 5 tabs, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass contacts, through-hole right-angle, solder termination, black fully insulated housing.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Through Hole, Right Angle |
| Terminal type | Header |
| Color | Black |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Features | 5 Tabs |
| Insulation | Fully Insulated |
| Termination | Solder |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.504\" (12.80mm) |
The 521384-5 is the 5-tab member of TE Connectivity's Faston quick-disconnect header line, a through-hole right-angle header with a fully insulated black housing. Tab width is 0.250" (6.35mm) and tab thickness is 0.032" (0.81mm); the tin-plated brass contacts suit moderate-cycle applications where corrosion resistance is not the primary concern.
