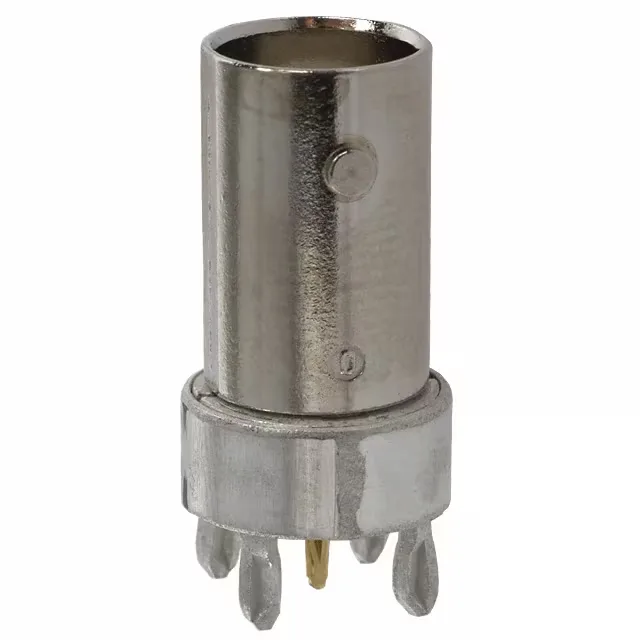

BNC Jack, 50 Ohm, Press-Fit — 5222006-1
It terminates via press-fit on both the centre contact and the shield — no solder required, which speeds board assembly and makes rework cleaner than a soldered BNC.
The 50 Ohm impedance suits RF test and telecom systems. The 4 GHz ceiling covers most cellular and Wi-Fi bands below that frequency.
Construction and Materials
Zinc body with nickel finish — the nickel gives a corrosion-resistant surface that holds up to handling and maintains the ground path through the shell. The centre contact is beryllium copper with gold plating, a combination that keeps contact resistance low over the 500-cycle life and resists fretting corrosion in environments with vibration or thermal cycling. The dielectric is PTFE, which maintains a stable 50 Ohm impedance across the temperature range and has low loss at RF frequencies.
