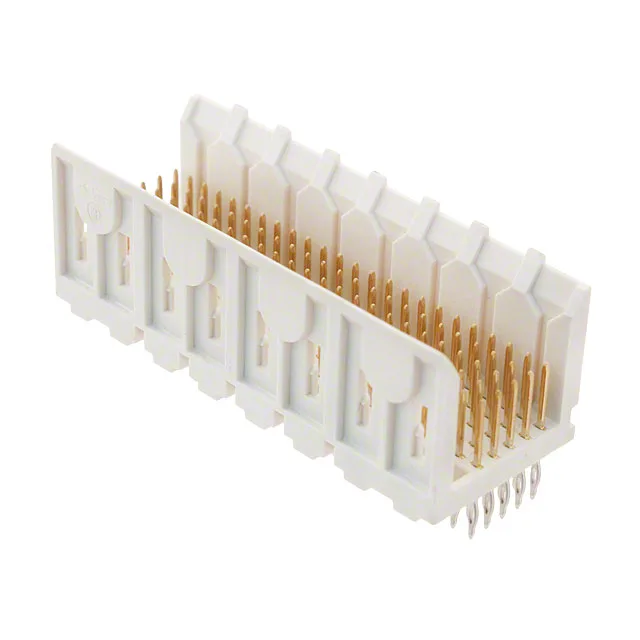

TE Connectivity 5223002-4 Z-PACK Header, 120 Pos, 2.00mm

MPN5223002-4
Active

TE Connectivity Z-PACK Futurebus header, 5223002-4, 120 positions, 5 rows, 0.079" (2.00mm) pitch, press-fit termination, through hole, gold contacts, UL94 V-0, -55°C to 125°C.

$13.0900Ref. price · indicative, final on quote
5223002-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5223002-4 Technical Specifications
ParameterValue
SeriesZ-PACK
Mounting typeThrough Hole
Connector typeHeader, Male Pins
Voltage rating30V
Operating temperature-55°C ~ 125°C
ColorNatural
Material flammability ratingUL94 V-0
Pitch0.079\" (2.00mm)
PackageTube
TerminationPress-Fit
Contact finishGold
Rows5
Positions120

Product details

The TE Connectivity 5223002-4 is a 120-position, 5-row header in the Z-PACK series, built to the Futurebus connector standard. The housing is natural UL94 V-0 rated material, and the contacts are gold-plated on the mating interface.

Press-Fit Termination and Board Layout

The press-fit termination means no solder wicking, no flux residue, and no reflow profile to manage — the connector is pressed into the backplane with a controlled insertion force. The through-hole mounting gives mechanical retention without secondary hardware, but the hole diameter and plated barrel tolerance must match the compliant pin spec in the TE application drawing.

Frequently asked questions

What is the mating connector for the 5223002-4?

The 5223002-4 is a Futurebus header, male pins. It mates with the corresponding Z-PACK Futurebus receptacle — typically a right-angle female connector with the same 2.00 mm pitch and 120-position layout. Confirm the mating half part number against your backplane pinout.
