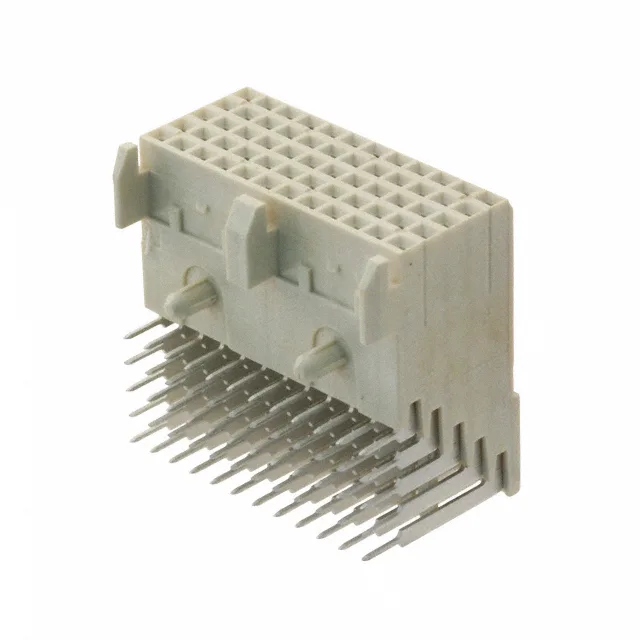

Futurebus Backplane Receptacle — 60-Position, 5-Row Density
It packs 60 circuits across 5 rows on a tight 0.079" (2.00 mm) pitch — the row count and pitch together keep the board footprint compact while routing 60 differential pairs or single-ended signals through a single connector body.
Board Layout Fit — Pitch, Orientation, and Keep-Out
With 5 rows, the connector body width is roughly 10 mm (5 × 2.00 mm), plus the through-hole solder tails on the right-angle bend. The right-angle orientation means the connector overhangs the board edge by the depth of the housing — account for this in the card-edge clearance to the backplane slot wall. The spacer feature (listed in the spec) provides standoff height between the connector body and the PCB surface, which helps with solder-joint inspection and cleaning after wave solder.
30 V Signal Duty — Not a Power Rail Connector
The 30 V voltage rating confirms this is a signal-only interconnect.
