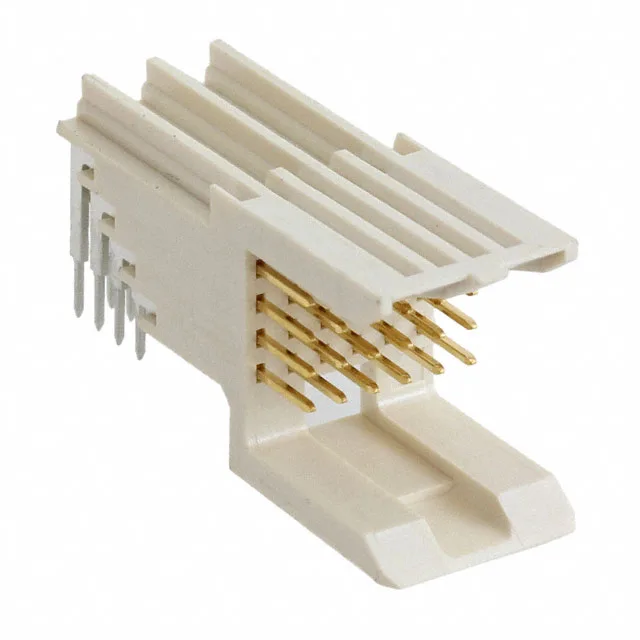

TE 5223513-1 Z-PACK Futurebus Header, 24 Pos, 2.00 mm

MPN5223513-1
Active

TE Connectivity Z-PACK Futurebus header, 24 positions, 2.00 mm pitch, 4 rows, right-angle board edge mount, through-hole solder, gold contact finish, UL94 V-0, natural housing.

$14.9600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5223513-1 Technical Specifications
ParameterValue
SeriesZ-PACK
Mounting typeBoard Edge, Through Hole, Right Angle
Connector typeHeader, Male Pins
Voltage rating30V
Operating temperature-55°C ~ 125°C
ColorNatural
Material flammability ratingUL94 V-0
Pitch0.079\" (2.00mm)
PackageTube
FeaturesBoard Guide
TerminationSolder
Contact finishGold
Rows4
Positions24

Product details

The TE Connectivity 5223513-1 is a 24-position header in the Z-PACK series, built to the Futurebus connector style — a high-density, high-speed backplane interface standard. It uses a 0.079" (2.00 mm) pitch across 4 rows, with all positions loaded. The housing is natural-colour UL94 V-0 rated, and the contacts are finished in gold. This is a board-edge, through-hole, right-angle mount part — it sits perpendicular to the PCB, plugging into a mating receptacle on the backplane.

Board fit and mounting

The board-edge mount positions the mating face at the card edge, aligning with a backplane slot. The integrated board guide helps align the card during insertion, taking shear off the signal pins.

Frequently asked questions

Where can I buy 5223513-1 with in-stock availability?

5223513-1 is sourced to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for your quantity.
