TE Connectivity AMP Connectors UPM (Universal Power Modules) series, 5223957-1, female guide module, 2 mm pitch alignment, bulk package, RoHS compliant, active production.
| Parameter | Value |
|---|---|
| Series | UPM (Universal Power Modules) |
| Accessory type | Guide Module |
| Package | Bulk |
| For use with (Related products) | UPM Series |

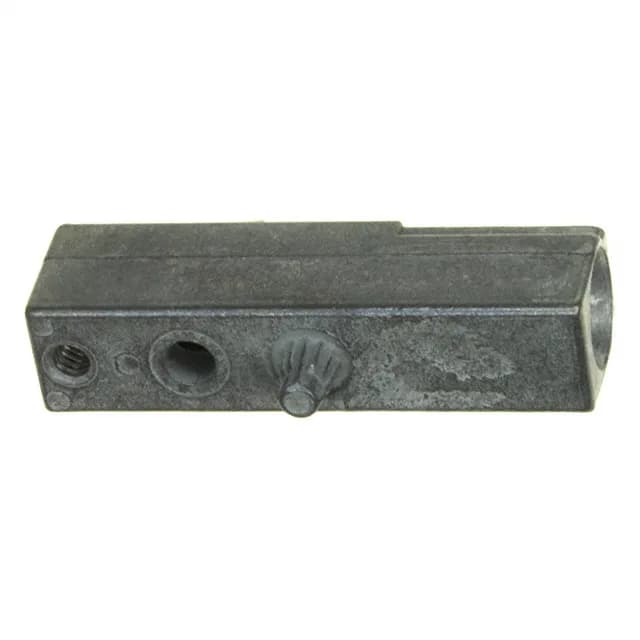

The 5223957-1 is a female guide module from the UPM (Universal Power Modules) series, designed to align and polarize mating backplane connector halves during blind-mate assembly. It carries no electrical contacts—its job is mechanical registration, ensuring the power and signal pins engage without stubbing or bending.
It is RoHS compliant, meeting the material restriction requirements for EU markets.
It is a mechanical alignment guide for UPM series backplane connectors. It ensures the mating connector halves align correctly during blind-mate assembly, preventing pin damage.
Yes, it is RoHS compliant.
