Guide Pin for UPM Power Connector Alignment

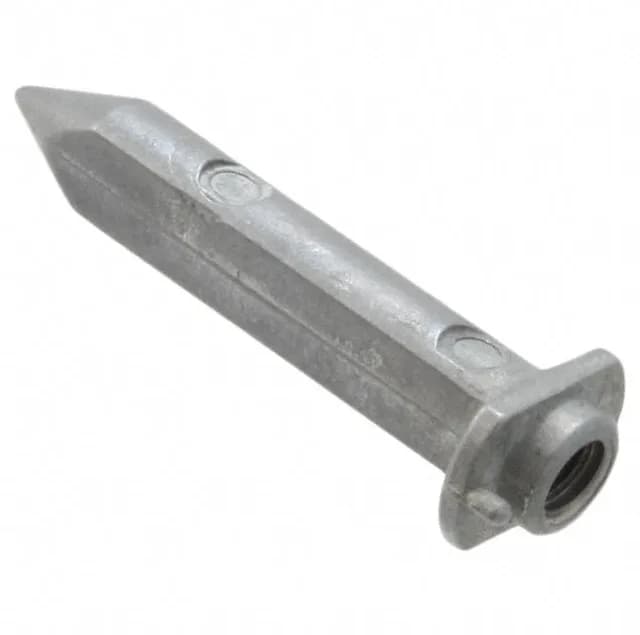

The TE Connectivity 5223985-5 is a keyed guide pin from the UPM (Universal Power Modules) series, designed to provide mechanical alignment and polarization when mating high-current power connectors. The 6-32 thread allows it to be secured into the connector housing or panel, ensuring the male and female halves engage without contact damage.
This guide pin is intended for use with UPM series connectors. It serves as an alignment accessory, not a power-carrying contact, so it does not affect current or voltage ratings of the mated pair. The keying feature prevents mismating between different UPM connector configurations in the same assembly.
