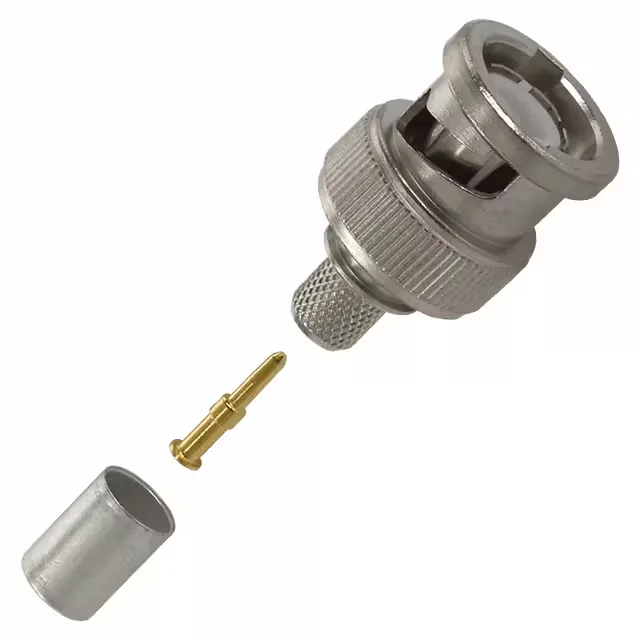

5225395-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5225395-2 BNC Plug, 50 Ohm, 4 GHz, Obsolete

MPN5225395-2
Obsolete

TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, bayonet lock, for RG-59/62 cables, includes connector + contact + ferrule, silver body.

$10.2400Ref. price · indicative, final on quote
5225395-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5225395-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59, 59A, 59B, 62, 62A, 62B
Operating temperature-55°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The TE Connectivity 5225395-2 is a BNC plug, male pin, designed for in-line, free-hanging termination of common 75 Ohm video coax cables such as RG-59, RG-59A, RG-59B, RG-62, RG-62A, and RG-62B. It is a 50 Ohm impedance connector rated to 4 GHz maximum frequency, with an insertion loss of 0.2 dB. The kit includes the connector body, one center contact, and one ferrule — everything needed for a single cable termination in one order code.

Rated for 500 mating cycles, this plug is suited for field-service and test-equipment applications where connectors are regularly disconnected and reconnected.

Frequently asked questions

What cable does the 5225395-2 work with?

The 5225395-2 is designed for RG-59, RG-59A, RG-59B, RG-62, RG-62A, and RG-62B coaxial cables.

What is the impedance of the 5225395-2?

The 5225395-2 has a 50 Ohm impedance rating.
