TE Connectivity BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, RG-55/223 cable, 500 mating cycles, bulk pack of 3 pieces.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-55, 55A, 55B, 223 |
| Operating temperature | -55°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|

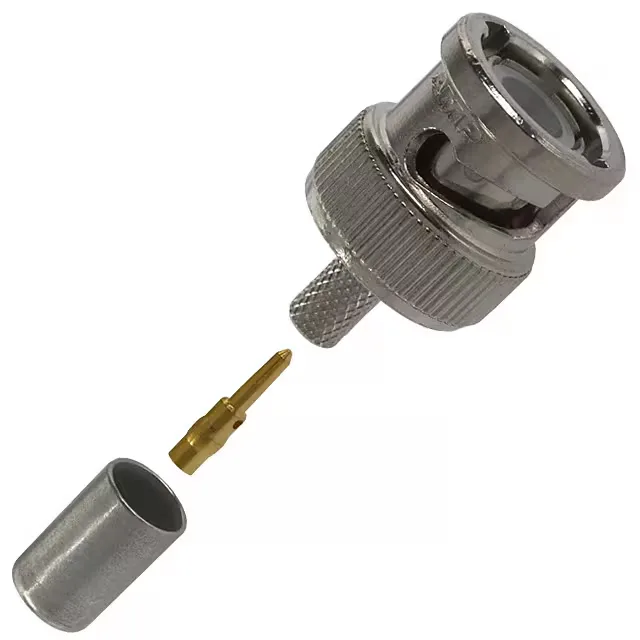

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5225395-3: This plug accepts RG-55, RG-55A, RG-55B, and RG-223 coaxial cables — common double-shielded 50 Ohm types used in military and instrumentation applications. The centre contact and shield are both crimp-terminated; the shield termination uses a crimp ferrule over the braid.
For a form-fit-function alternative, a cross-reference search against other 50 Ohm BNC plugs with crimp termination for RG-55/223 is the practical next step.
Yes, TE Connectivity lists the 5225395-3 as Obsolete. No direct replacement part number has been issued. The part is available through surplus and broker channels while stock lasts.
