TE Connectivity 5225398-8 BNC Jack, 50 Ohm, 4 GHz, Obsolete

MPN 5225398-8
Obsolete

TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, crimp termination, 7-piece kit, Bulk.

$8.2100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5225398-8 key specifications
ParameterValue
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-179, 187
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper

All specifications

5225398-8 additional specifications
ParameterValue
PackageBulk
Includes7 pcs - 1 Connector, 1 Bushing, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Bulkhead Jack Kit — What You Get and Where It Fits

The 5225398-8: The kit is packaged in Bulk, so you get everything needed for one termination in a single order code. This BNC jack is built for RG-179 and RG-187 coaxial cables — the 75 Ohm miniature coax types commonly used in video, broadcast, and instrumentation.

Obsolete — Sourcing Reality for the 5225398-8

The 5225398-8 is officially listed as Obsolete. TE Connectivity no longer manufactures this BNC jack kit as a standard production item. For a buyer with a BOM line calling out this exact order code, the sourcing path is through independent distribution and surplus inventory.

What the Kit Includes — No Surprises at the Bench

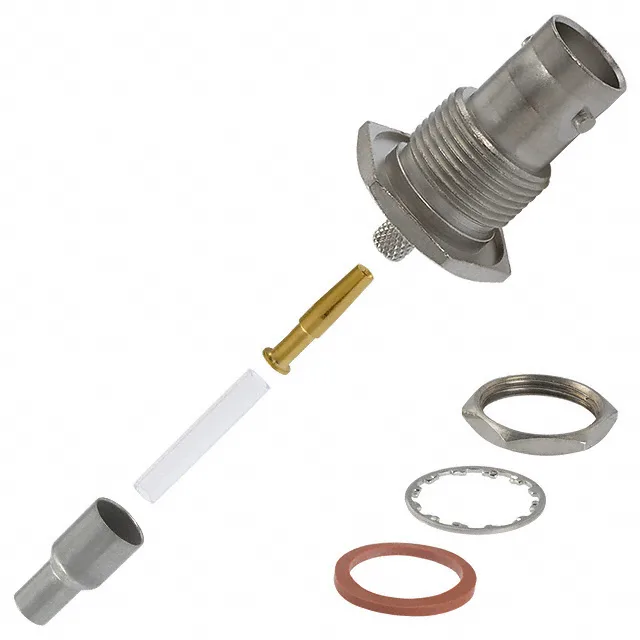

The 7-piece kit breaks down as: 1 BNC jack connector body (with PTFE insulator and gold-plated beryllium copper center contact installed), 1 bushing, 1 center contact (spare or for field replacement), 1 crimp ferrule, 1 gasket, 1 lockwasher, and 1 mounting nut. The nut secures the connector from the front side of the panel — a bulkhead front-side nut mount. The gasket provides a seal against the panel face.

Cable Prep and Termination Notes

This jack is designed for RG-179 and RG-187 cables. Both cable types are 75 Ohm miniature coax with a solid or stranded center conductor and a braided shield. The center contact crimps onto the center conductor; the ferrule crimps over the braid and jacket. Strip lengths and crimp die selection follow the manufacturer's application tooling recommendations for these cable groups. The PTFE dielectric handles the 500 V rating and 4 GHz bandwidth without signal degradation.
