TNC Plug for RG-142 Coax — 50 Ohm, 11 GHz

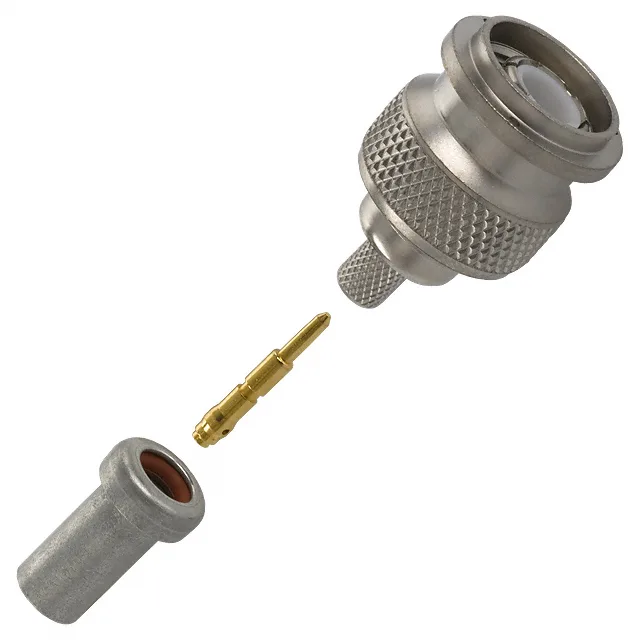

The 5225555-6: It ships as a 3-piece kit — the connector body, the crimp contact, and the ferrule — so one order code covers the full termination hardware. The 500 mating cycle rating is moderate; the gold-plated centre contact and nickel-plated brass body resist corrosion through repeated connect-disconnect cycles typical of test equipment or temporary field setups.
The cable group is RG-142, 142A, and 142B, which are double-shielded, PTFE-dielectric coax with a nominal impedance of 50 Ohm. The dielectric material in the connector is PTFE, matching the cable dielectric for a consistent impedance transition through the termination. No board footprint to design — just crimp and screw.
Temperature and Environmental Reach
The weatherproof rating adds confidence for direct-exposure outdoor installations, though it is not a full immersion rating like IP67.
